- Wall Mount ‘H’ Back Plate
- Precise Closing Feature to Zero Degrees
Using two hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31″ (787 mm).
Using three hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34″ (864 mm).
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | ‘H’ |
| Edge Profile | Beveled |
| Glazing Thickness (Inches) | 1/4 To 5/16 |

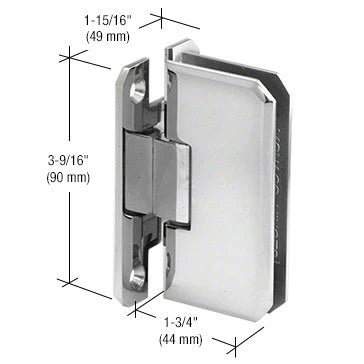

| Height (Inches) | 3-9/16 |
| Material | Brass |
| Maximum Door Weight – 2 Hinges (Pounds) | 55 |
| Maximum Door Weight – 3 Hinges (Pounds) | 82 |
| Maximum Door Width – 2 Hinges (Inches) | 31 |
| Maximum Door Width – 3 Hinges (Inches) | 34 |
| Mounting Type | Wall Mount |
| Series | Mona |
| Width (Inches) | 1-3/4 |
| Hinge Swings | 90 degree In and 90 degree Out |
| Closing Type | Precise Closing to 0 degree |
