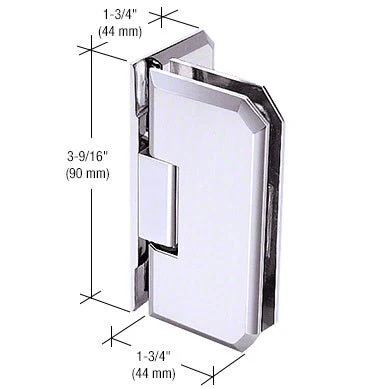

MO044 Beveled Chamfered Edge Wall Mount Offset Back Plate Shower Hinge
MO044 Beveled Chamfered Edge Wall Mount Offset Back Plate Shower Hinge - Image 2

MO044 Beveled Chamfered Edge Wall Mount Offset Back Plate Shower Hinge

$18.00

+ Free Shipping
SKU: MO044 Categories: , Brand:
  • Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
  • Precise Closing Feature to Zero Degrees
  • Available in Several Beautiful Finishes

Using two hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31″ (787 mm).

Using three hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34″ (864 mm).



Specifications

5 Degree Pre-SetNo
AdjustableNo
Back PlateOffset
Edge ProfileBeveled
Glazing Thickness (Inches)1/4 To 5/16

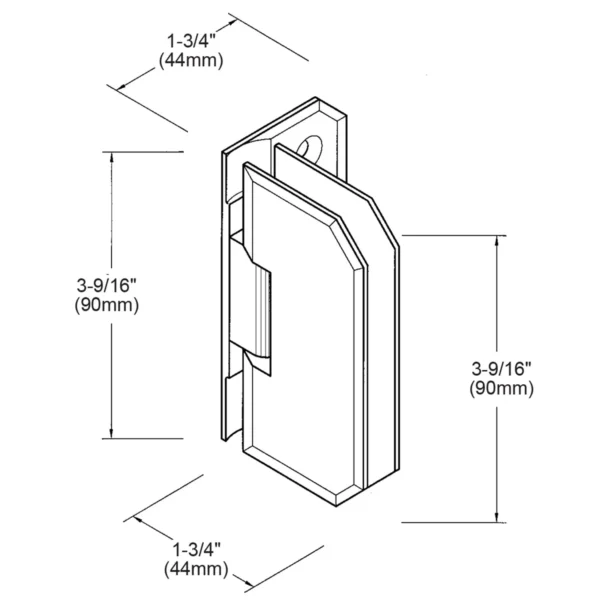

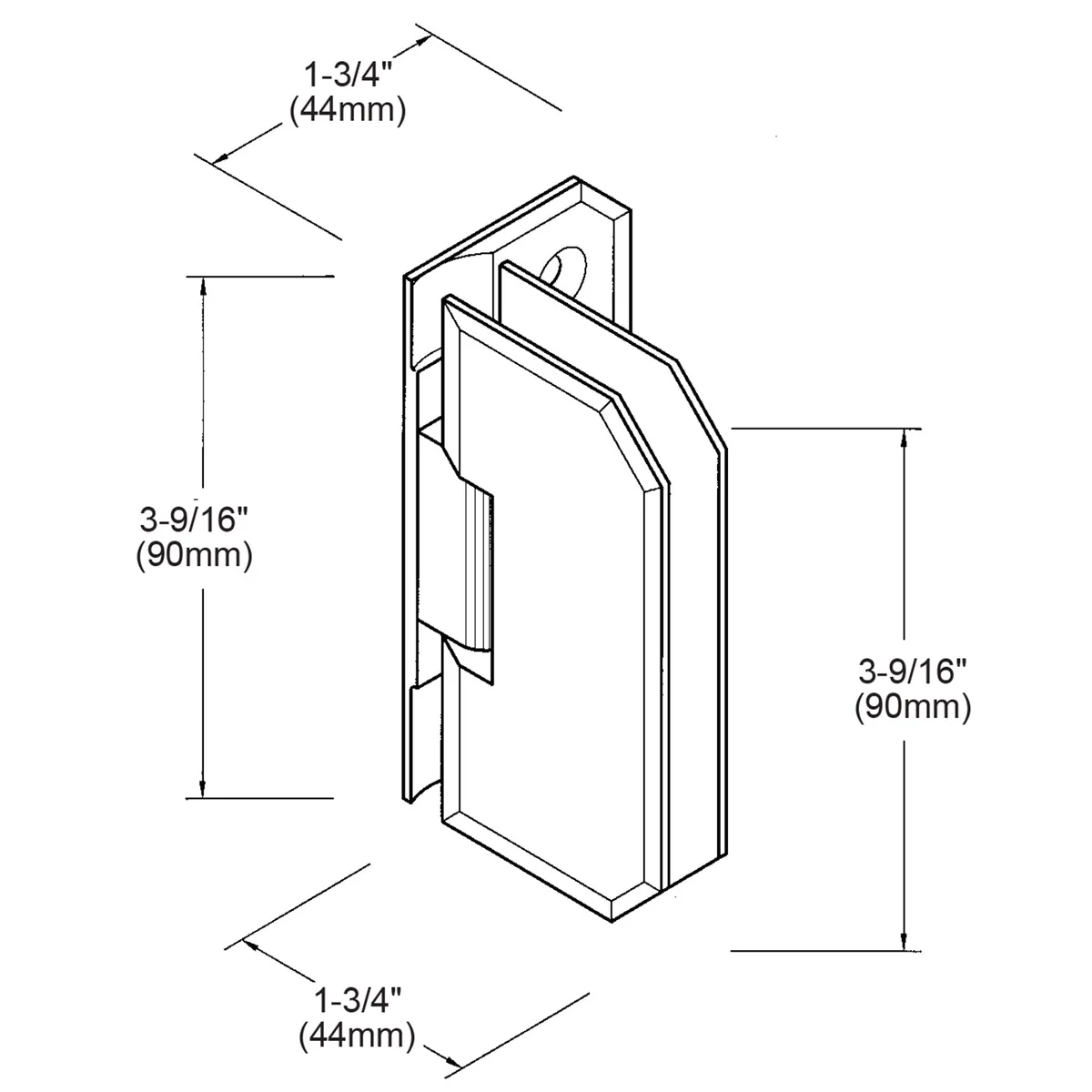

Height (Inches)3-9/16
MaterialBrass
Maximum Door Weight – 2 Hinges (Pounds)55
Maximum Door Weight – 3 Hinges (Pounds)82
Maximum Door Width – 2 Hinges (Inches)31
Maximum Door Width – 3 Hinges (Inches)34
Mounting TypeWall Mount
SeriesMona
Width (Inches)1-3/4
Hinge Swings 90 degree In and 90 degree Out
Closing Type Precise Closing to 0 degree
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
