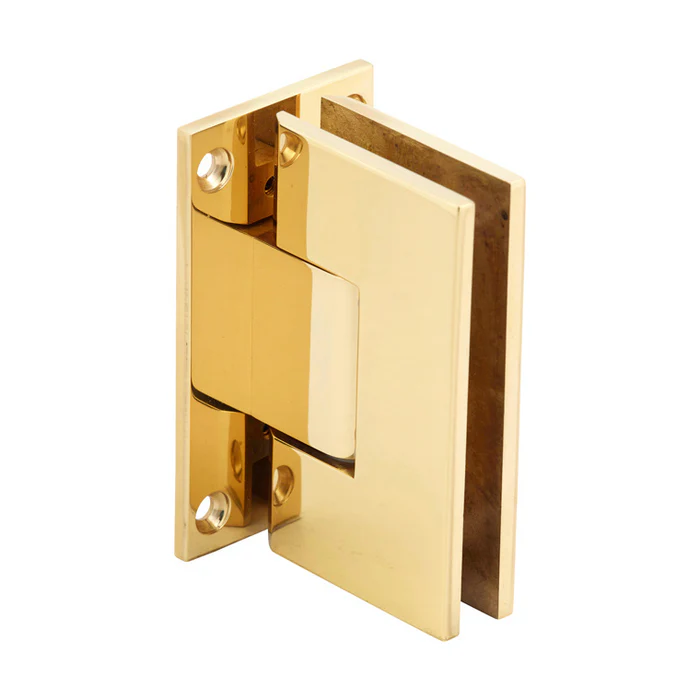

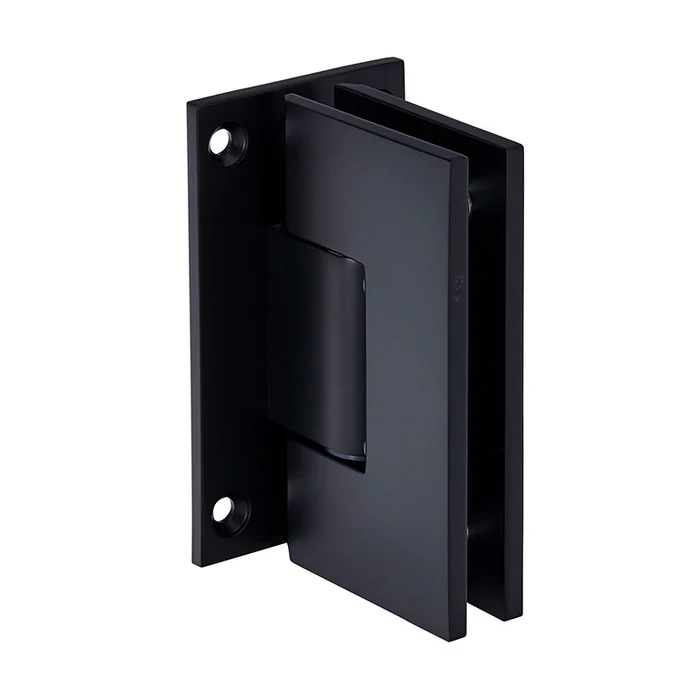

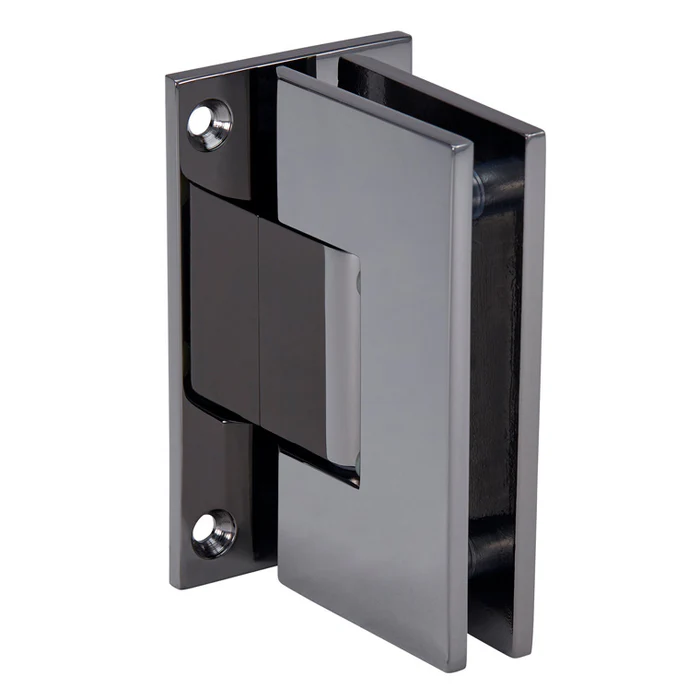

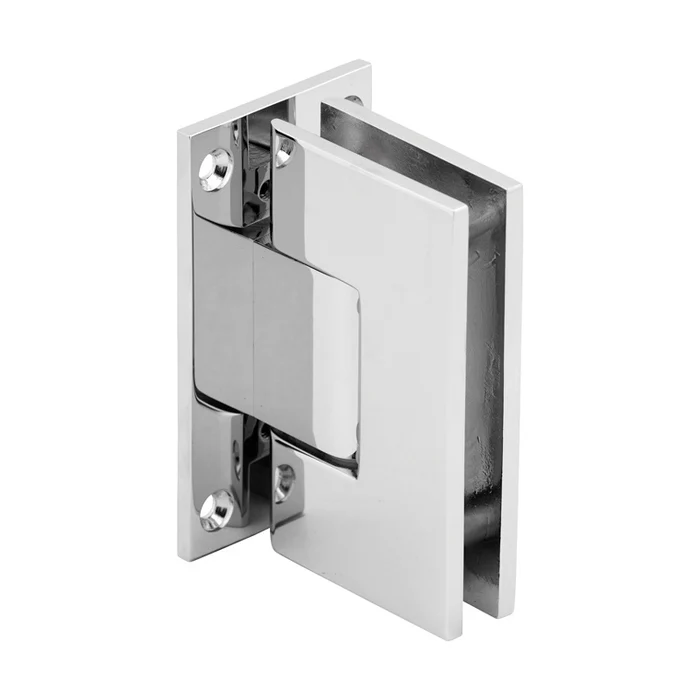

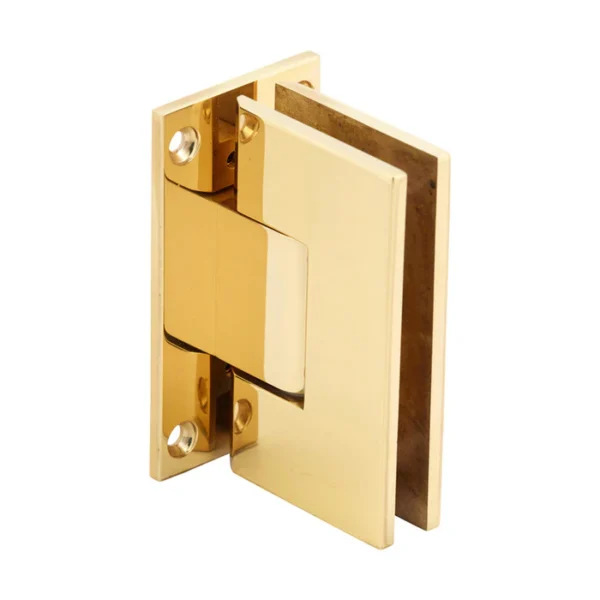

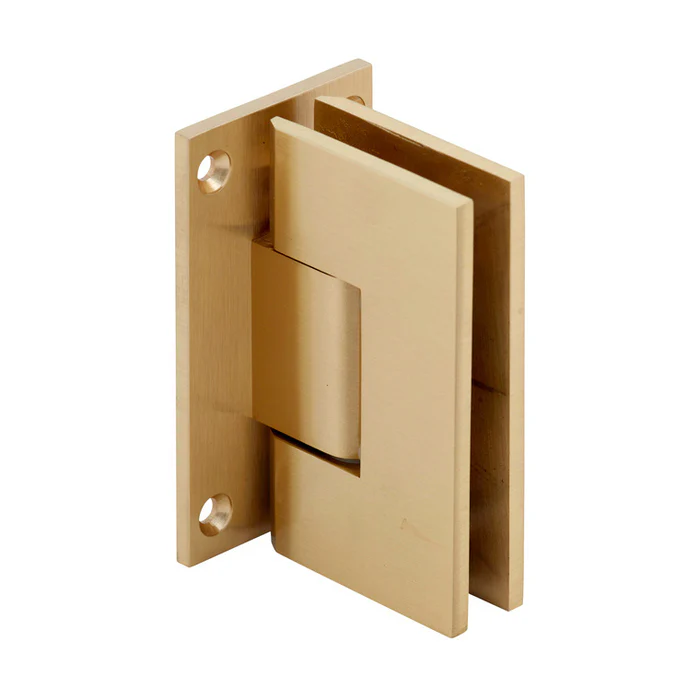

VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 2
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 3
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 4
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 5
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 6
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 7
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 8
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 9
VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge - Image 10

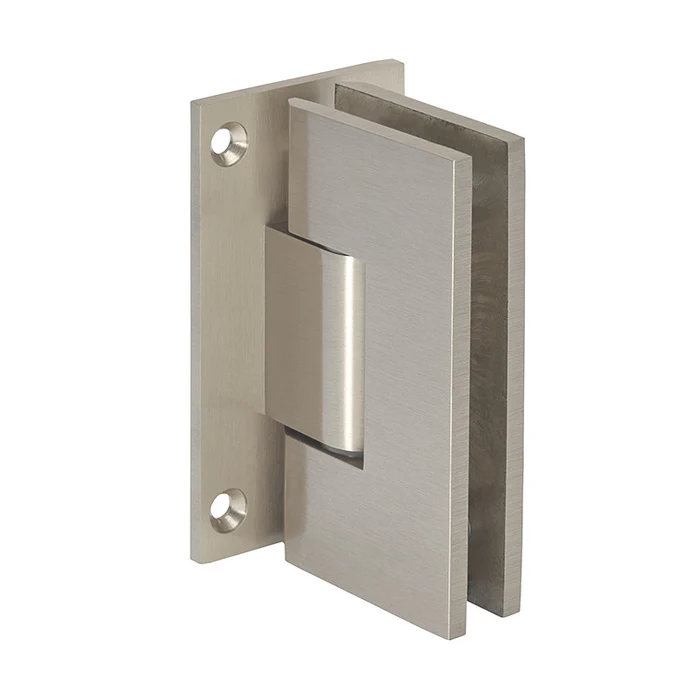

VE037 Heavy Duty Wall Mount Full Back Plate Hinge Shower Door Hinge

$16.00 – $19.00

+ Free Shipping
SKU: VE037 Category: Brand:
  • Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes
  • Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
  • Use Tempered Glass





Specifications

5 Degree Pre-SetNo
AdjustableNo
Back PlateFull
Glazing Thickness3/8 in. to 1/2 in. (10 mm to 12 mm)

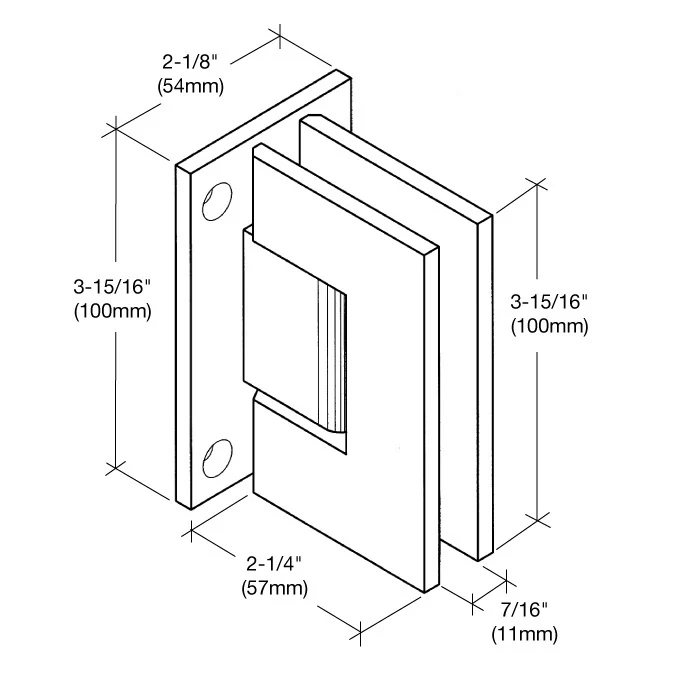

Height3-15/16 in. (100 mm)
MaterialBrass
Maximum Clamping Screw Torque60 lbf.in (677.9 cN.m)
Maximum Door Weight – 2 Hinges110 lbs. (49.9 kg)
Maximum Door Weight – 3 Hinges140 lbs. (63.5 kg)
Maximum Door Width36 in. (914 mm)
Mounting TypeWall Mount
Positive CloseNo
Self-CenteringYes
Series VENA
Width2-1/4 in. (57 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
