SRPR06 Senior Prma 06 Series EZ-Adjust Beveled Top Mount Pivot Hinge

$15.00

+ Free Shipping
SKU: SRPR06-EZ Category: Brand:
  • Top Mount ,Compatible Only with EZ-Adjust Header.
  • For Use with 1/2″ (12 mm) Glass
  • Available in Several Beautiful Finishes
  • No Drilling Required to Install Hinge Into EZ-Adjust Header
  • Adjustable Side-to-Side After Installing

SENIOR PRMA: Using two hinges with 1/2″ (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36″ (914 mm).

JUNIOR PRMA: Using two hinges with 1/4″ (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).

Custom finishes are available on request.

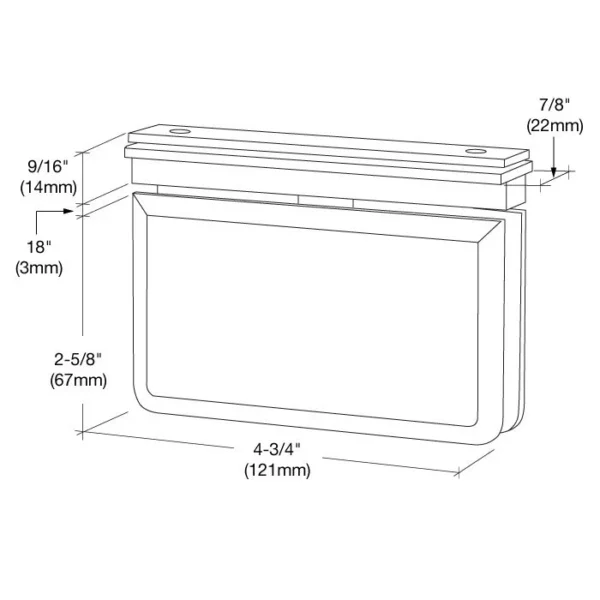

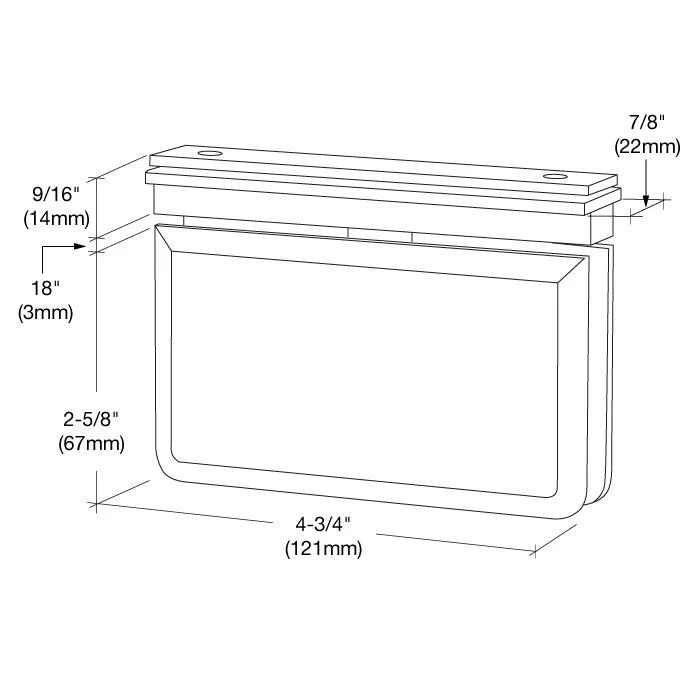

Specifications

Edge ProfileBeveled
Glazing Thickness1/2 in. (12 mm)
Height2-5/8 in. (67 mm)
MaterialBrass
Maximum Door Weight145 lbs. (65.8 kg)
Maximum Door Width36 in. (914 mm)
Mounting TypeHead & Sill Mount
Self-CenteringYes
SeriesSenior Prma
Width4-3/4 in. (121 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
