SRPR07 Top or Bottom Mount Senior Prma Beveled Pivot Hinge with Attached U-Clamp
SRPR07 Top or Bottom Mount Senior Prma Beveled Pivot Hinge with Attached U-Clamp - Image 2
SRPR07 Top or Bottom Mount Senior Prma Beveled Pivot Hinge with Attached U-Clamp - Image 3
SRPR07 Top or Bottom Mount Senior Prma Beveled Pivot Hinge with Attached U-Clamp - Image 4

SRPR07 Top or Bottom Mount Senior Prma Beveled Pivot Hinge with Attached U-Clamp

$18.50 – $20.00

+ Free Shipping
SKU: SRPR07 Category: Brand:
  • Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Top or Bottom Mount with Attached U-Clamp )
  • Available in Several Beautiful Finishes

SENIOR PRMA: Using two hinges with 1/2″ (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36″ (914 mm).

JUNIOR PRMA: Using two hinges with 1/4″ (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).

Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.

Custom finishes are available on request.

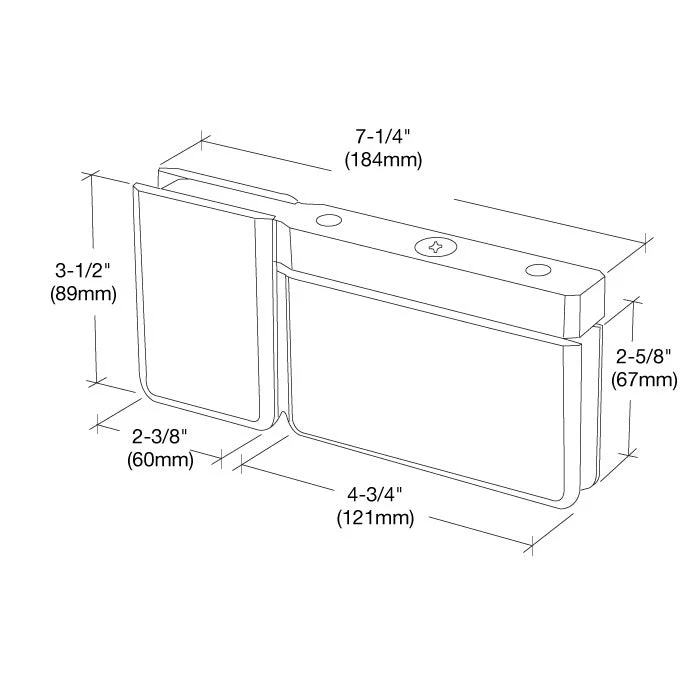

Specifications

Edge ProfileBeveled
Glazing Thickness1/2 in. (12 mm)
HandingField Reversible
Height – Door Portion2-5/8 in. (67 mm)
Height – Sidelite Portion3-1/2
MaterialBrass
Maximum Door Weight145 lbs. (65.8 kg)
Maximum Door Width36 in. (914 mm)
Mounting TypeHead & Sill Mount
Self-CenteringYes
SeriesSenior Prma
Width – Door Portion4-3/4 in. (121 mm)
Width – Sidelite Portion2-3/8 in. (60.3 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
