- Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass

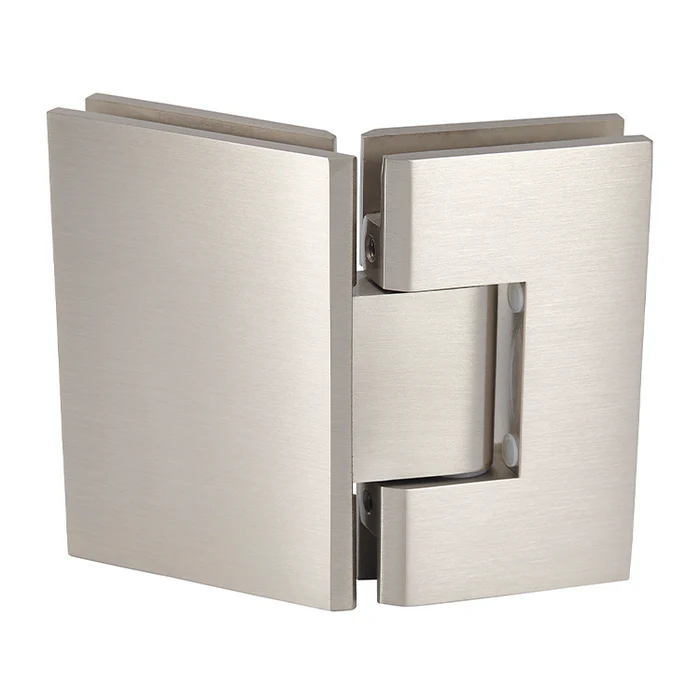

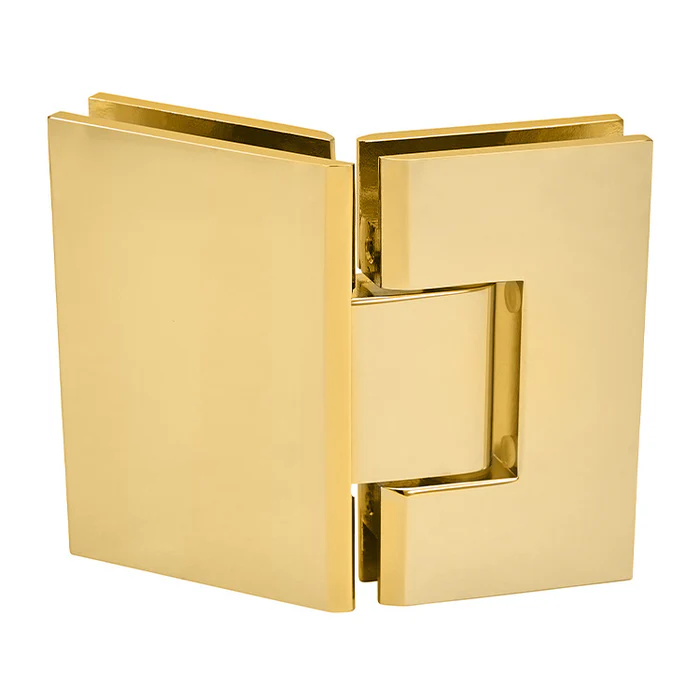

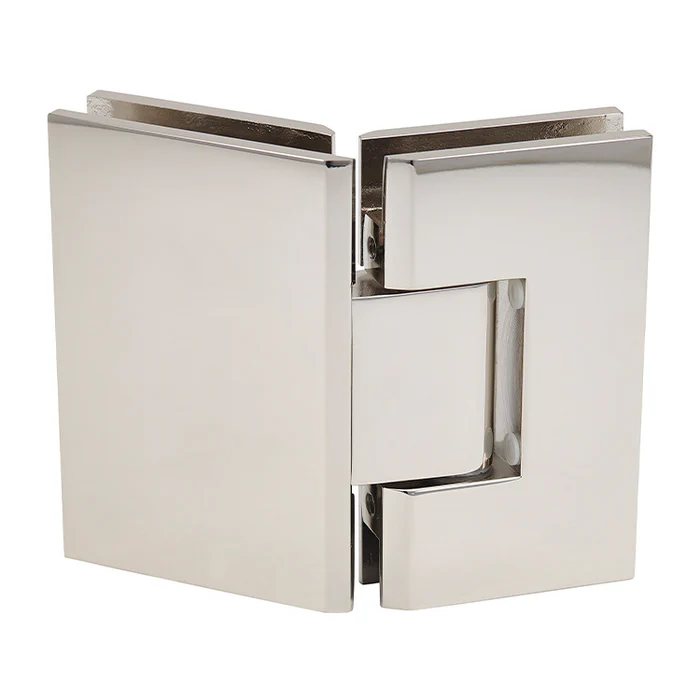

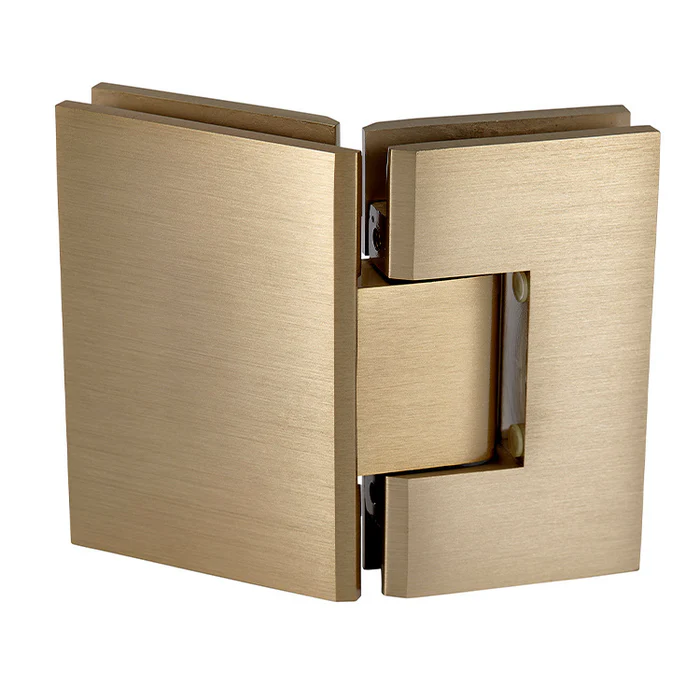

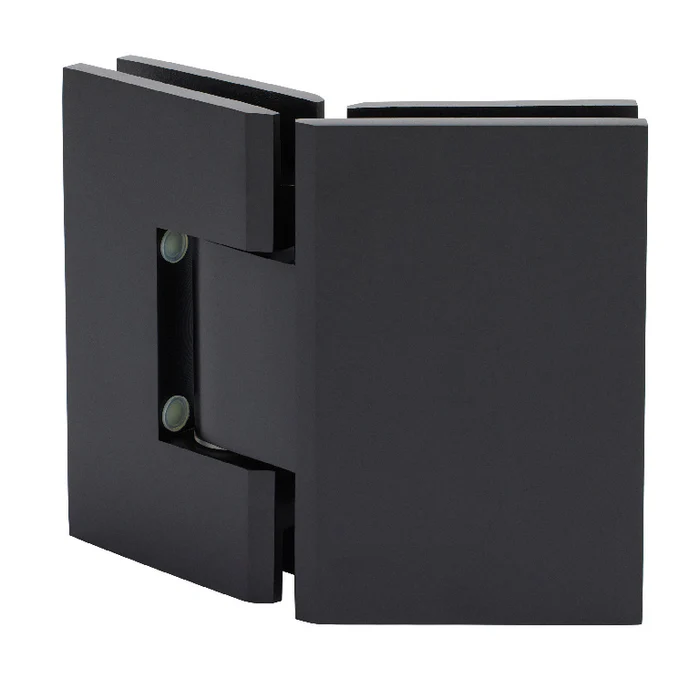

- Available in Several Beautiful Finishes
- 135 Degree Glass-to-Glass
- Use Tempered Glass
Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).
Using three hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36″ (914 mm).
Custom finishes are available on request.
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Edge Profile | Square |
| Glass To Glass Angle | 135 |
| Glazing Thickness | 3/8 in. to 1/2 in. (10 mm to 12 mm) |

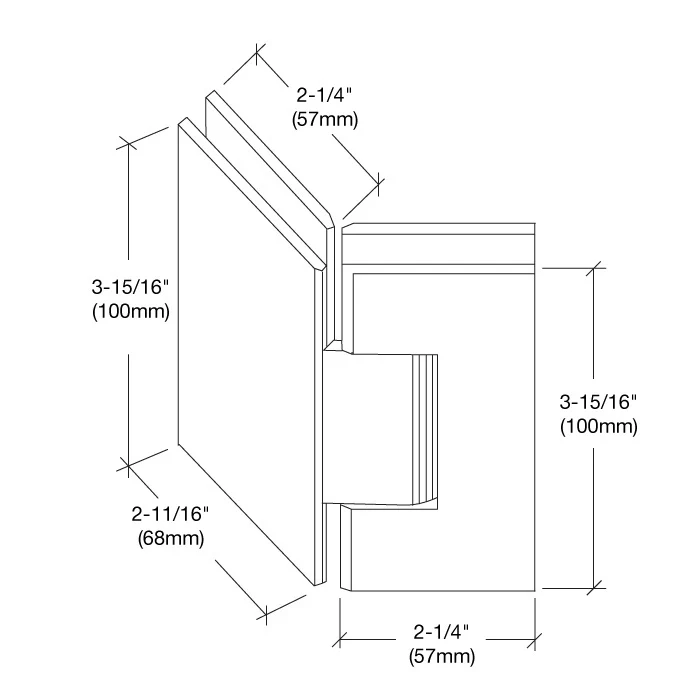

| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60 lbf.in (677.9 cN.m) |
| Maximum Door Weight – 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight – 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Glass To Glass |
| Self-Centering | Yes |
| Series | Vena |
| Width – Door Portion | 2-1/4 in. (57 mm) |
| Width – Sidelite Portion | 2-11/16 in. (68 mm) |
