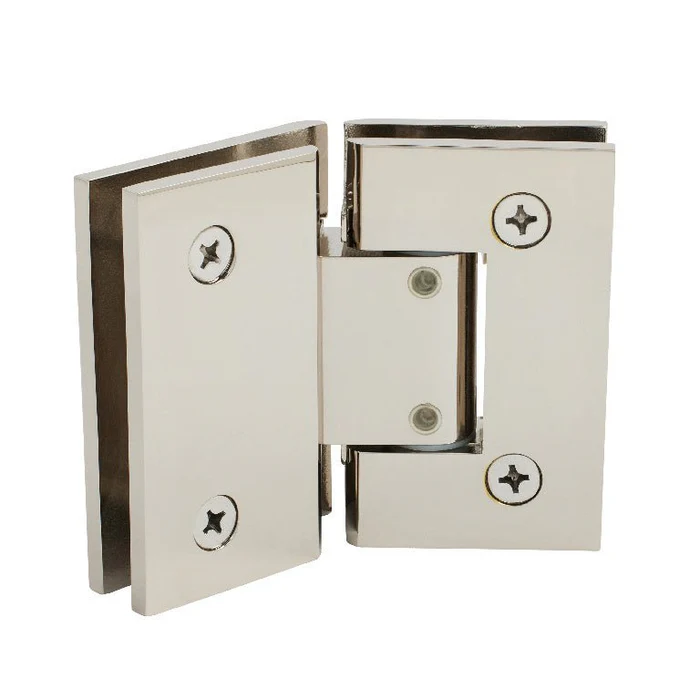

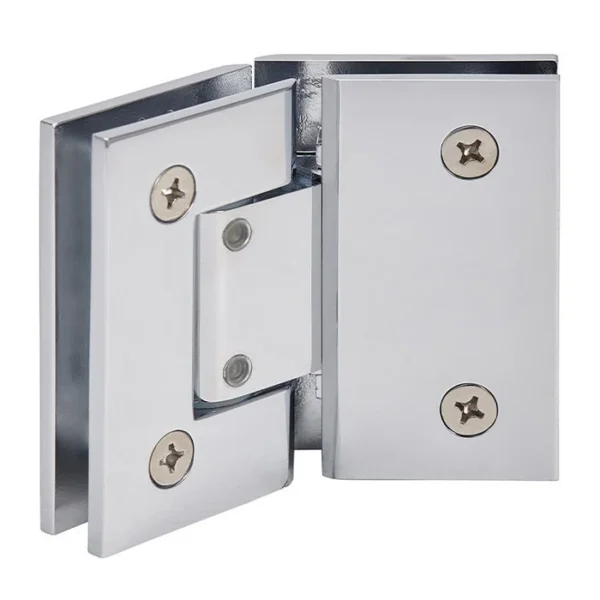

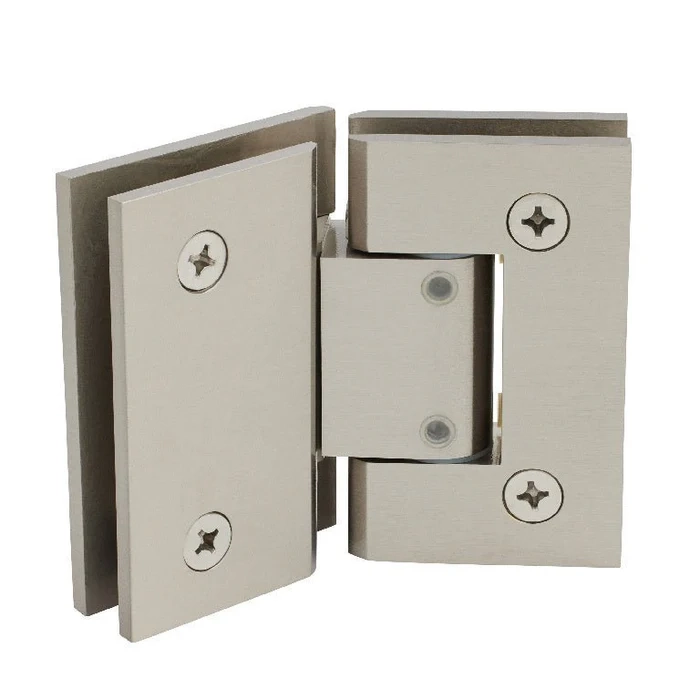

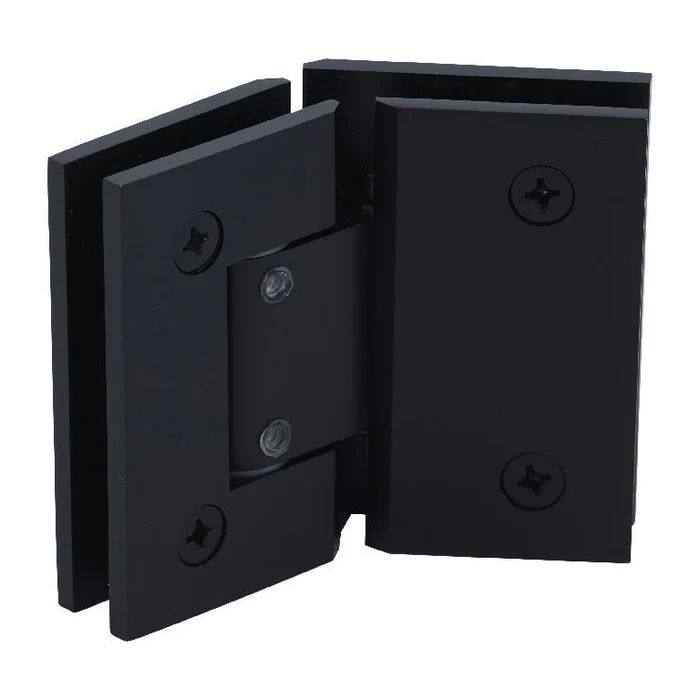

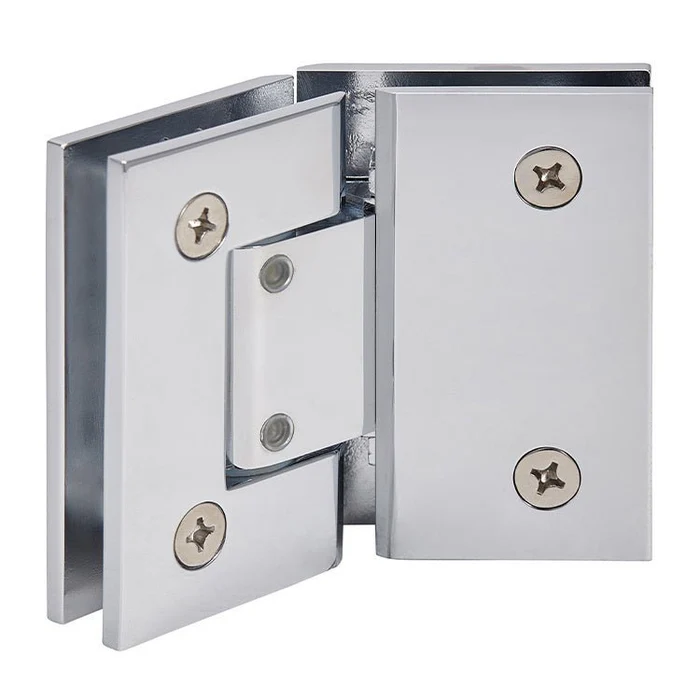

GE345 Standard Adjustable Square Corner 135 Degree Glass to Glass Shower Hinge

$20.00 – $22.00

+ Free Shipping
SKU: GE345 Categories: , Brand:
  • Adjustable to Any Angle Up to 90 Degrees without Removing Door
  • Available in Several Beautiful Finishes
  • Adjustable 135 Degree Glass-to-Glass
  • Custom finishes are available on request.

Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).



Specifications

5 Degree Pre-SetNo
AdjustableYes
Edge ProfileSquare
Glass To Glass Angle135
Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)

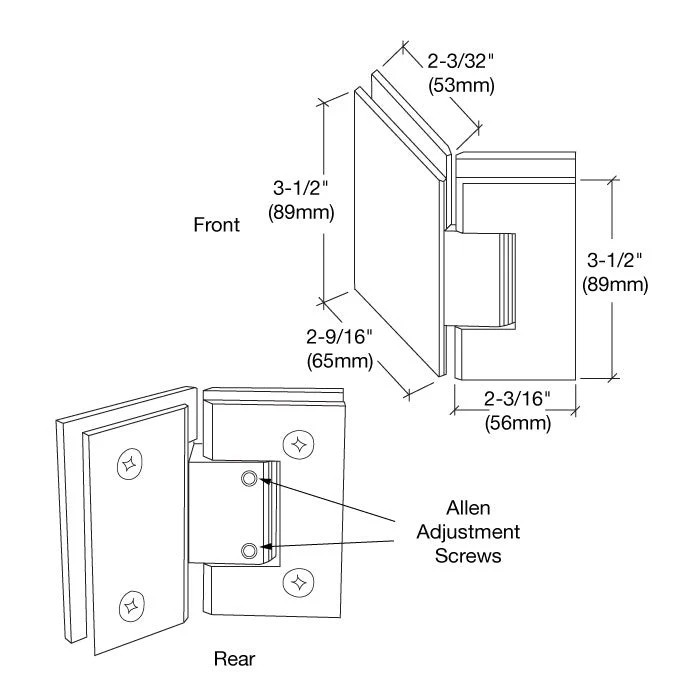

Height3-1/2 in. (89 mm)
MaterialBrass
Maximum Door Weight – 2 Hinges80 lbs. (36.3 kg)
Maximum Door Weight – 3 Hinges120 lbs. (54.4 kg)
Maximum Door Width – 2 Hinges28
Maximum Door Width – 3 Hinges32
Mounting TypeGlass To Glass
Self-CenteringYes
SeriesGena Adjustable
Width – Door Portion2-3/16 in. (56 mm)
Width – Sidelite Portion2-3/16 in. (56 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
