Name: VE180 Heavy Duty180 Degree Square Glass-to-Glass Shower Hinge
Brand: TOPGLASS
SKU: VE180
Availability: InStock

VE180 Heavy Duty180 Degree Square Glass-to-Glass Shower Hinge

$23.00 – $25.00

+ Free Shipping

Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass

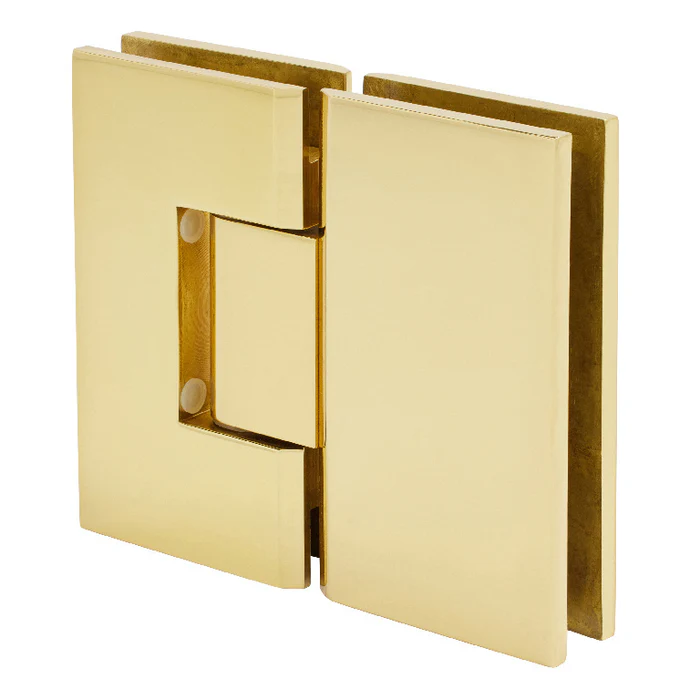

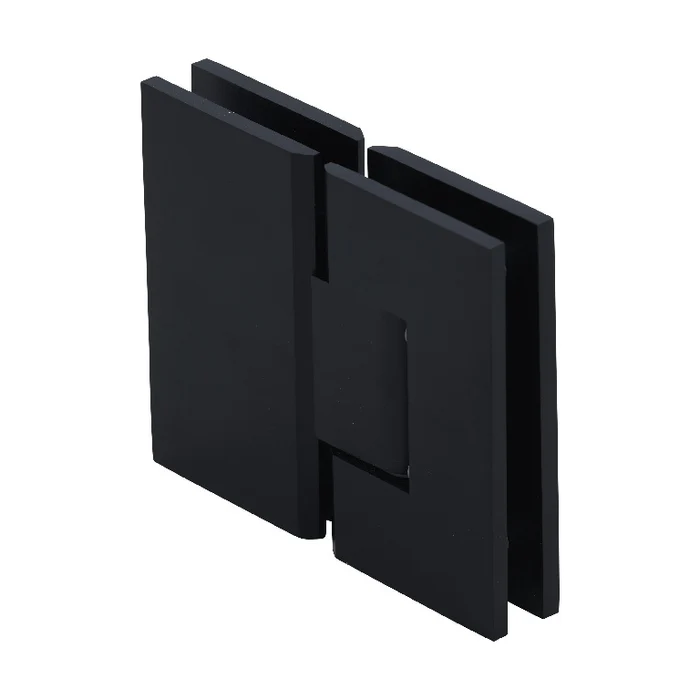

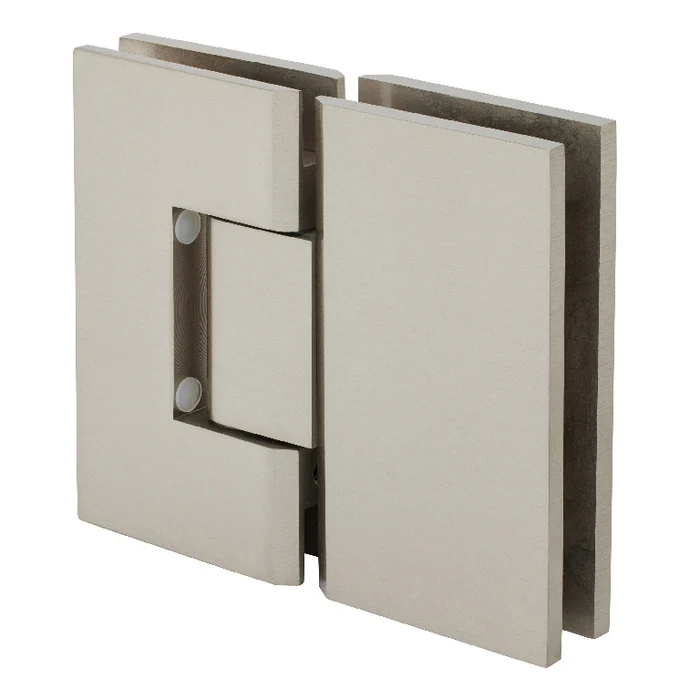

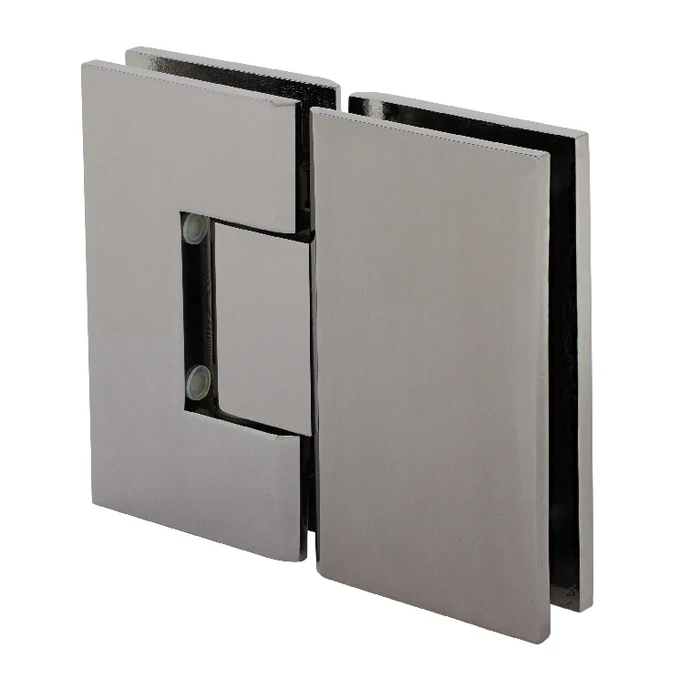

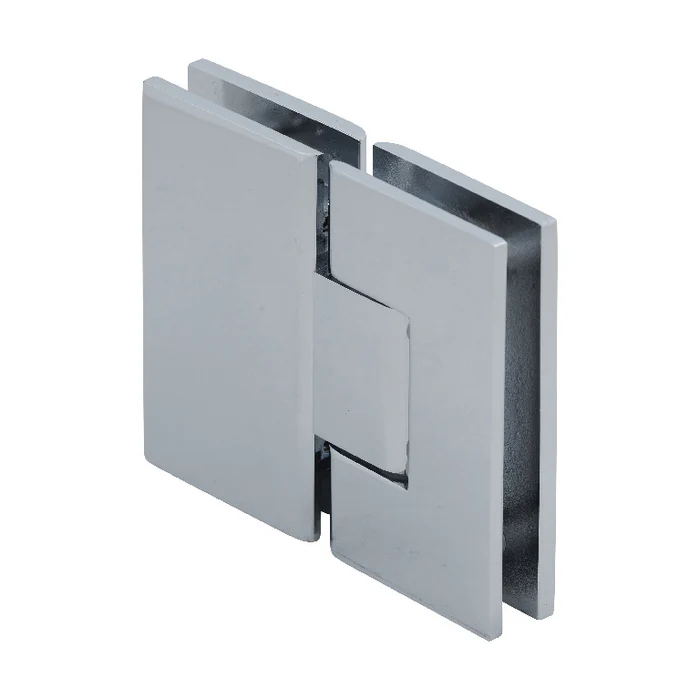

Available in Several Beautiful Finishes
180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
Use Tempered Glass

Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).

Using three hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36″ (914 mm).

Custom finishes are available on request.

5 Degree Pre-Set	No
Adjustable	No
Edge Profile	Square
Glass To Glass Angle	180
Glazing Thickness	3/8 in. to 1/2 in. (10 mm to 12 mm)

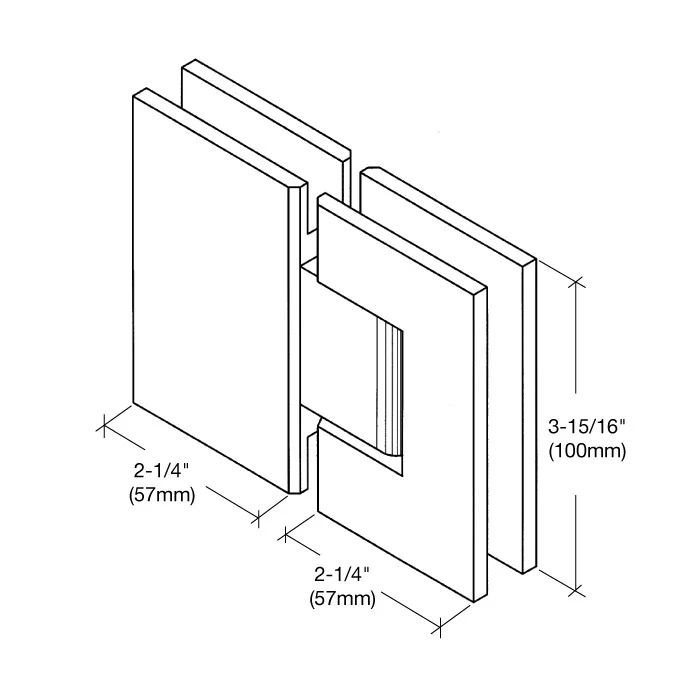

Height	3-15/16 in. (100 mm)
Material	Brass
Maximum Clamping Screw Torque	60 lbf.in (677.9 cN.m)
Maximum Door Weight – 2 Hinges	110 lbs. (49.9 kg)
Maximum Door Weight – 3 Hinges	140 lbs. (63.5 kg)
Maximum Door Width	36 in. (914 mm)
Mounting Type	Glass To Glass
Positive Close	No
Self-Centering	Yes
Series	Vena
Width – Door Portion	2-1/4 in. (57 mm)
Width – Sidelite Portion	2-1/4 in. (57 mm)
