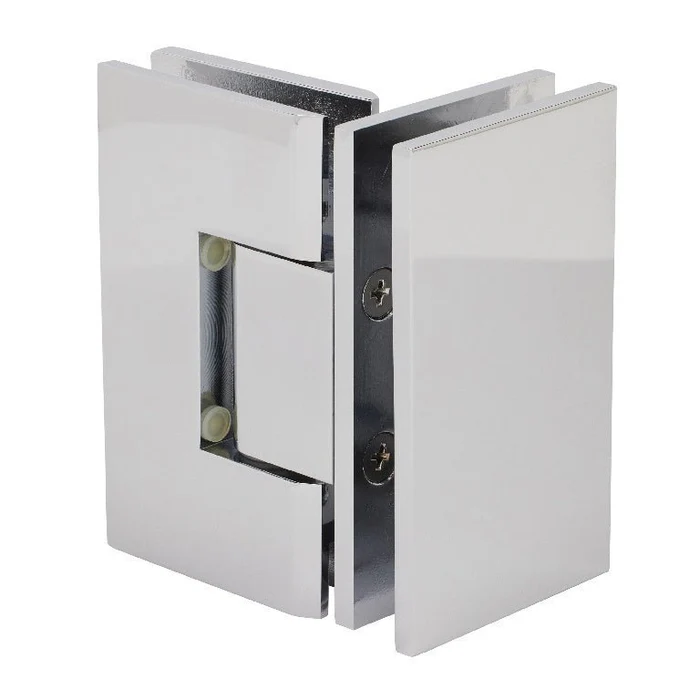

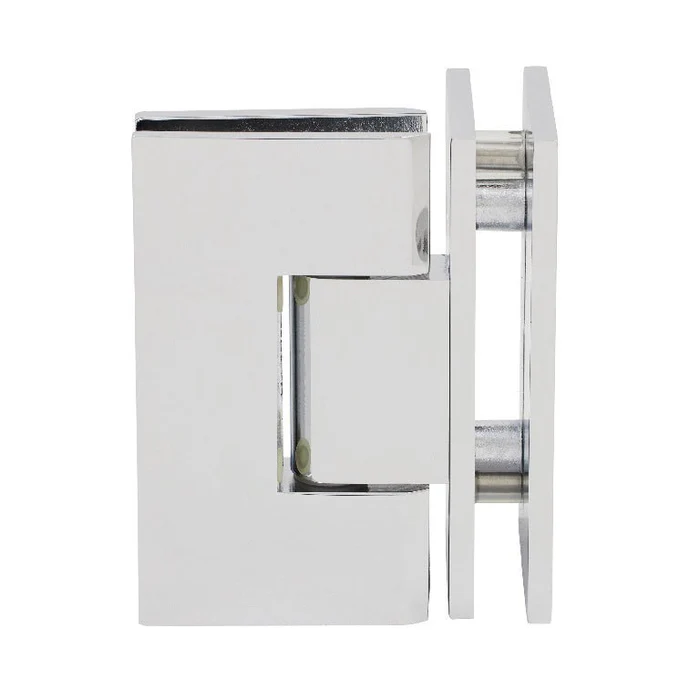

JRGE092 Junior 90 Degree Glass-to-Glass Square Shower Hinge
JRGE092 Junior 90 Degree Glass-to-Glass Square Shower Hinge - Image 2
JRGE092 Junior 90 Degree Glass-to-Glass Square Shower Hinge - Image 3

JRGE092 Junior 90 Degree Glass-to-Glass Square Shower Hinge

$20.00 – $22.00

+ Free Shipping
SKU: JRGE092 Categories: , Brand:
  • 90 Degree Glass-to-Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes

Using two hinges with 1/4″ to 5/16″ glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 1/4″ to 5/16″ glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32″ (813 mm).

Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0 degree), or 5 degree Pre-Set Model for tighter closure into shower interior.





Specifications

Edge ProfileSquare
Glass To Glass Angle90
Glazing Thickness1/4 in. To 5/16 in. (6 mm To 8 mm)

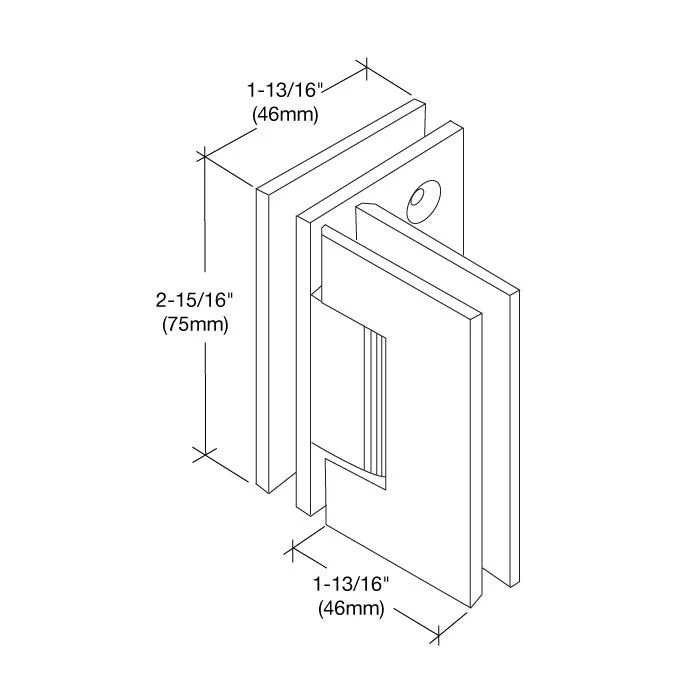

Height2-15/16 in. (75 mm)
MaterialBrass
Maximum Door Weight – 2 Hinges62 lbs. (28.1 kg)
Maximum Door Weight – 3 Hinges92 lbs. (41.7 kg)
Maximum Door Width – 2 Hinges28
Maximum Door Width – 3 Hinges32
Mounting TypeGlass To Glass
Self-CenteringYes
SeriesJunior Gena
Width – Door Portion1-13/16 in. (46 mm)
Width – Sidelite Portion1-13/16 in. (46 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
