- Self-Centering with Reversible 5 Degree Pivot Pin

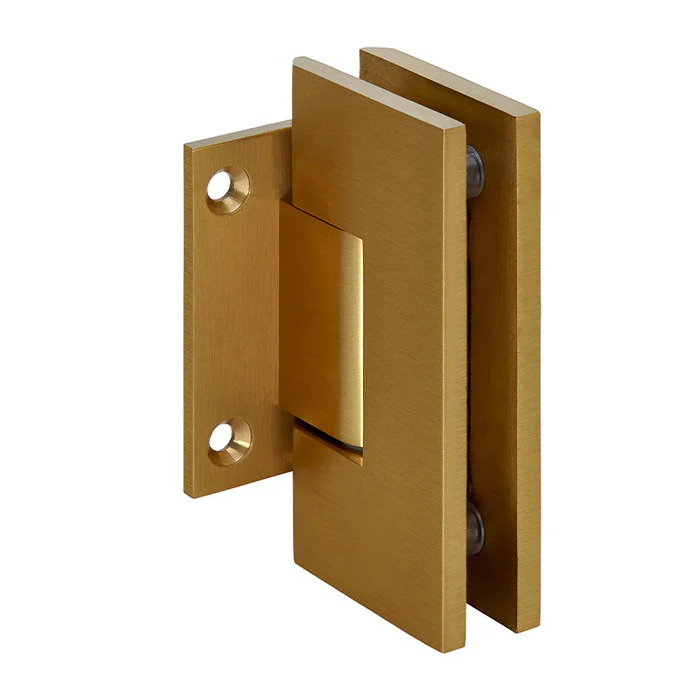

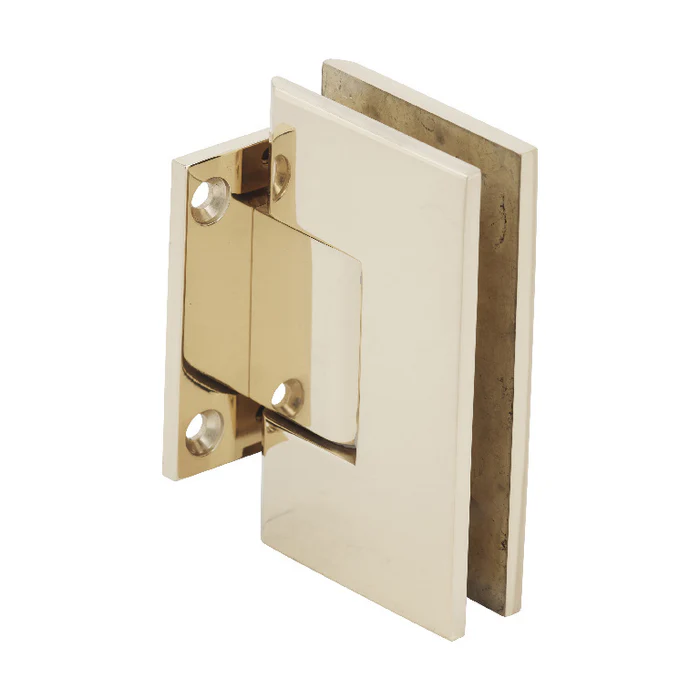

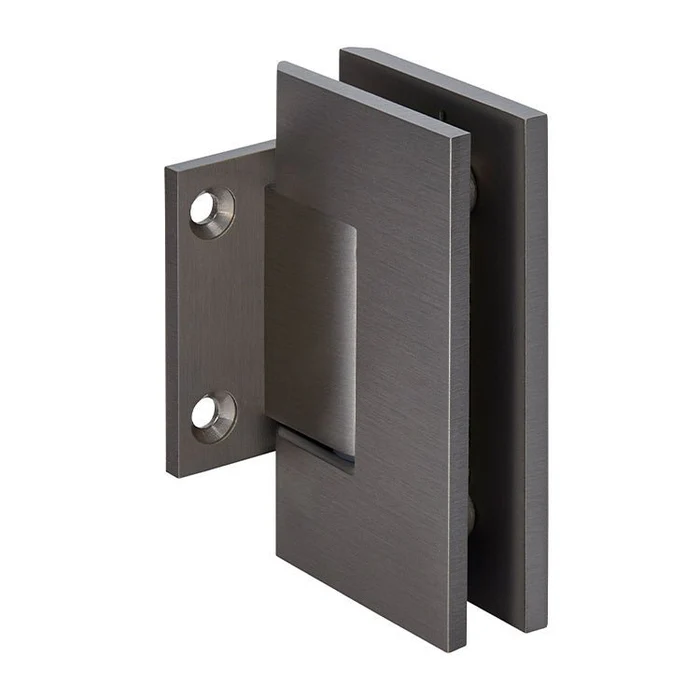

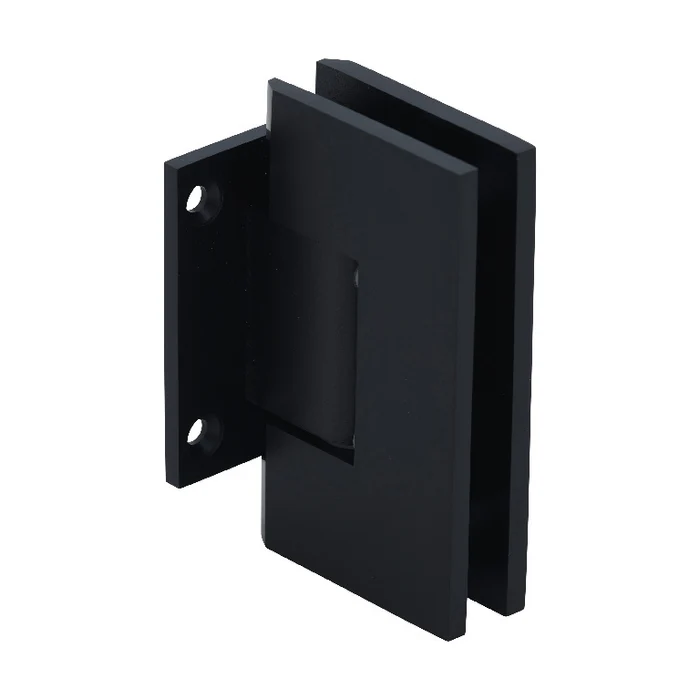

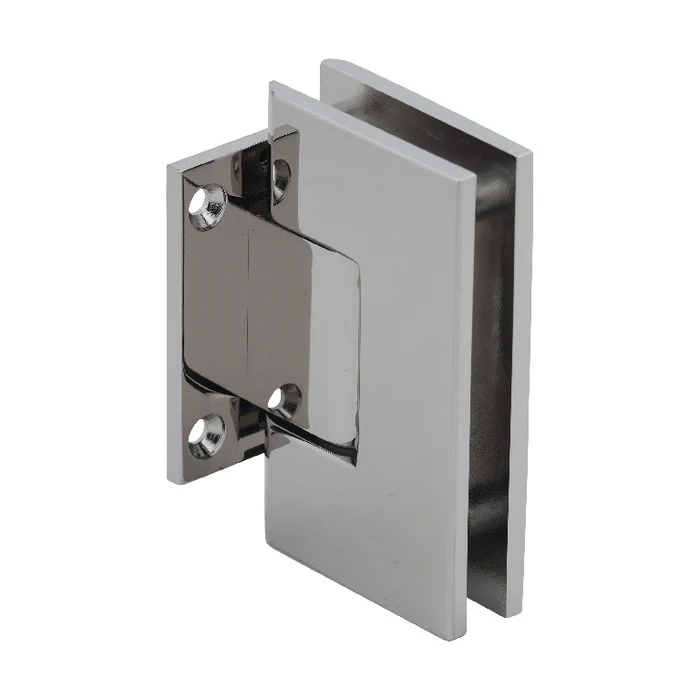

- Available in Several Beautiful Finishes

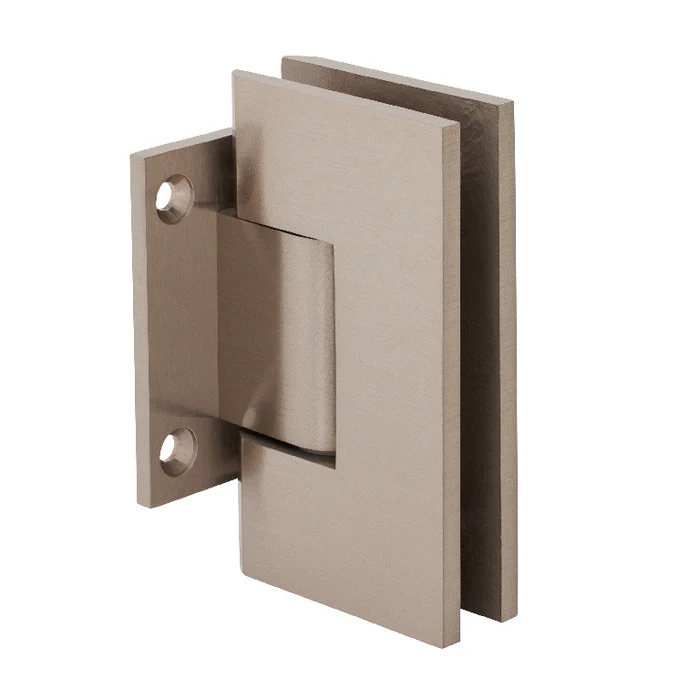

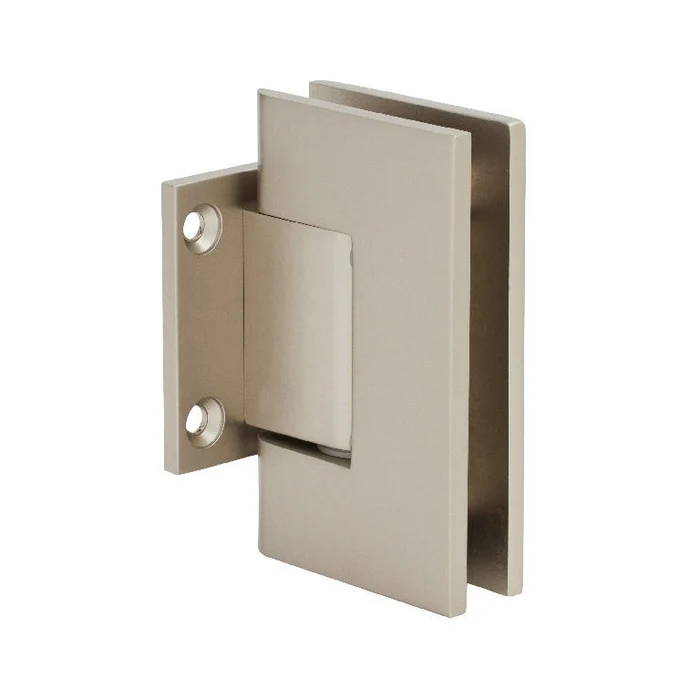

- Wall Mount Short Back Plate Standard Model
- Use Tempered Glass
Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).
Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Custom finishes are available on request.
