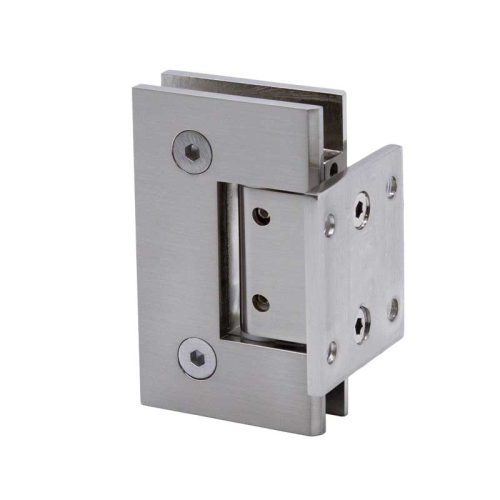

GE337SH Standard Adjustable Square Corner Wall Mount Short Back Plate Shower Hinge

Name: GE337SH Standard Adjustable Square Corner Wall Mount Short Back Plate Shower Hinge
Brand: TOPGLASS
SKU: GE337SH
Availability: InStock

$12.00

+ Free Shipping

SKU: GE337SH Categories: Adjustable Shower Hinge, Shower Door Hardware Brand: TOPGLASS

Description
Additional information

Adjustable to Any Angle Up to 90 Degrees without Removing Door
Available in Several Beautiful Finishes
Adjustable Wall Mount Short Back Plate
Custom finishes are available on request.

Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).

5 Degree Pre-Set	No
Adjustable	Yes
Back Plate	short
Edge Profile	Square
Glazing Thickness	5/16 in. To 1/2 in. (8 mm To 12 mm)
Height	3-1/2 in. (89 mm)
Material	Brass
Maximum Door Weight – 2 Hinges	80 lbs. (36.3 kg)
Maximum Door Weight – 3 Hinges	120 lbs. (54.4 kg)
Maximum Door Width – 2 Hinges	28
Maximum Door Width – 3 Hinges	32
Mounting Type	Wall Mount
Self-Centering	Yes
Series	Gena Adjustable
Width	2-3/16 in. (56 mm)
