Name: JRGE074 Junior Wall Mount Short Back Plate Square Shower Hinge
Brand: TOPGLASS
SKU: JRGE074
Availability: InStock

JRGE074 Junior Wall Mount Short Back Plate Square Shower Hinge

$9.00 – $11.90

+ Free Shipping

Wall Mount Short Back Plate (Allows Clean Sight Line From Shower Exterior)
Self-Centering with Reversible 5 Degree Pivot Pin
Available in Several Beautiful Finishes

Using two hinges with 1/4″ to 5/16″ glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 1/4″ to 5/16″ glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum width of 32″ (813 mm).

Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0 degree), or 5 degree Pre-Set Model for tighter closure into shower interior.

5 Degree Pre-Set	No
Adjustable	No
Back Plate	short back
Glazing Thickness	1/4 in. To 5/16 in. (6 mm To 8 mm)

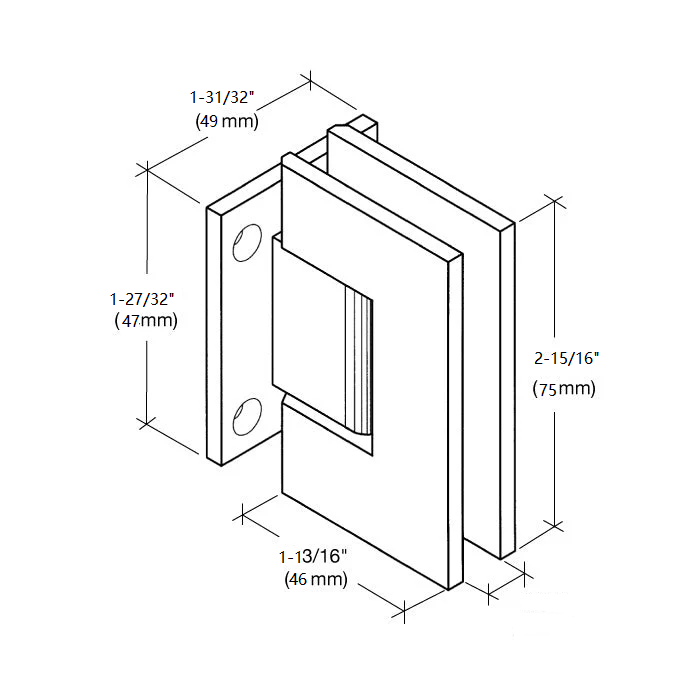

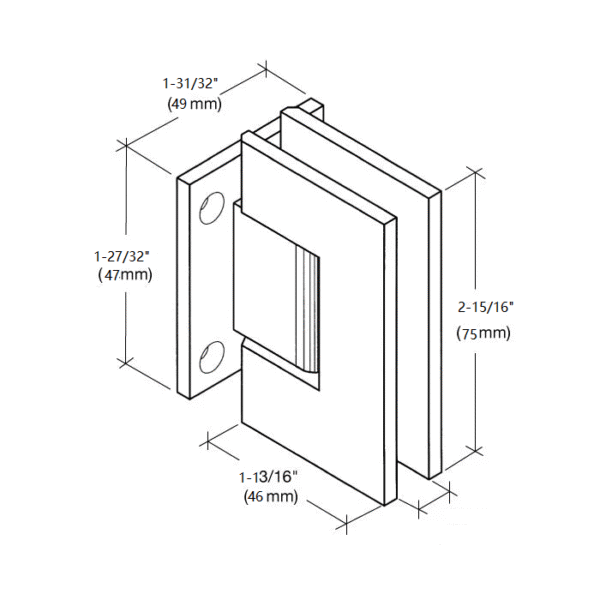

Height	2-15/16 in. (75 mm)
Material	Brass
Maximum Door Weight – 2 Hinges	62 lbs. (28.1 kg)
Maximum Door Weight – 3 Hinges	92 lbs. (41.7 kg)
Maximum Door Width – 2 Hinges	28
Maximum Door Width – 3 Hinges	32
Mounting Type	Wall Mount
Self-Centering	Yes
Series	Junior Gena
Width	1-13/16 in. (46 mm)
