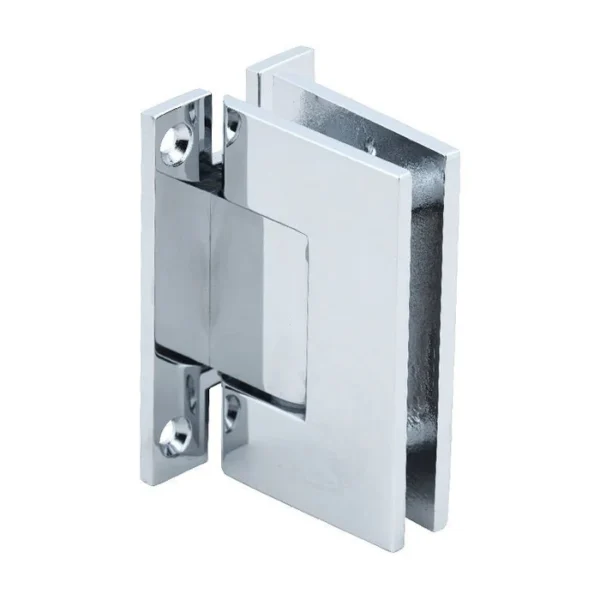

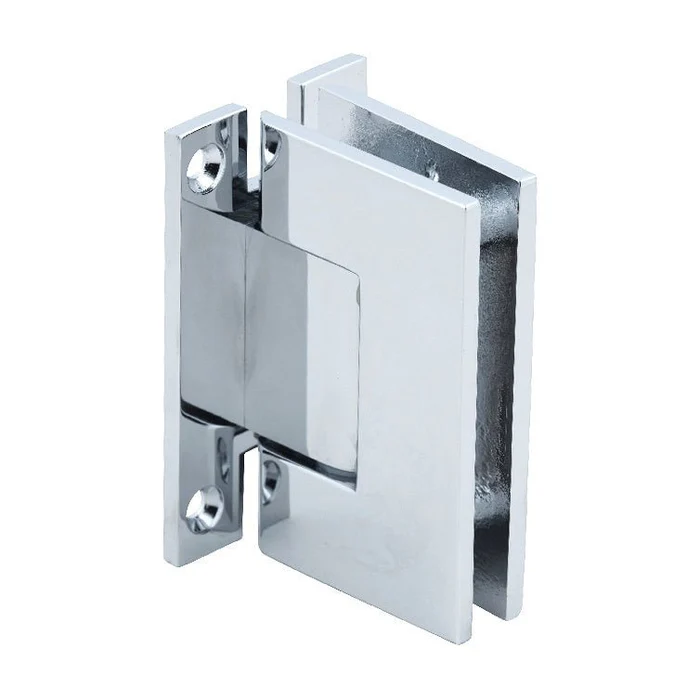

GE037H Standard Wall Mount ‘H’ Back Plate Shower Hinge

$11.00$13.90

+ Free Shipping
SKU: GE037H Categories: , Brand:
  • New Wall Plate Design Allows for Tighter Clearance
  • Same VENE Series Quality with a Different Look
  • Square Design is the Most Contemporary Look
  • Custom finishes are available on request.

The product line has been updated to include an “H” shaped wall mounting plate, allowing the installer to get the glass closer to the wall. This new design will give increased flexibility in regards to the clearance between the glass and the wall.



Specifications

5 Degree Pre-SetNo
AdjustableNo
Back Plate‘H’
Edge ProfileSquare
Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)

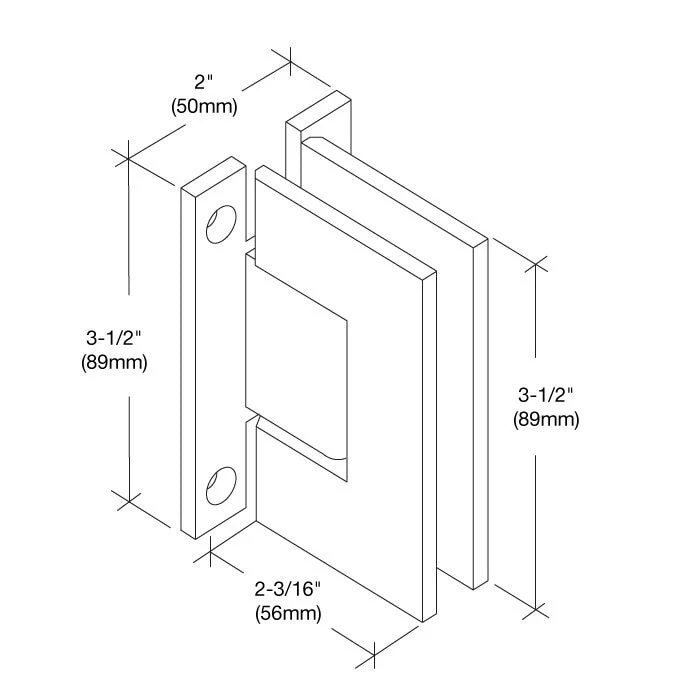

Height3-1/2 in. (89 mm)
MaterialBrass
Maximum Door Weight – 2 Hinges80 lbs. (36.3 kg)
Maximum Door Weight – 3 Hinges120 lbs. (54.4 kg)
Maximum Door Width – 2 Hinges28
Maximum Door Width – 3 Hinges32
Mounting TypeWall Mount
Self-CenteringYes
Gena
Width2-3/16 in. (56 mm)
Color

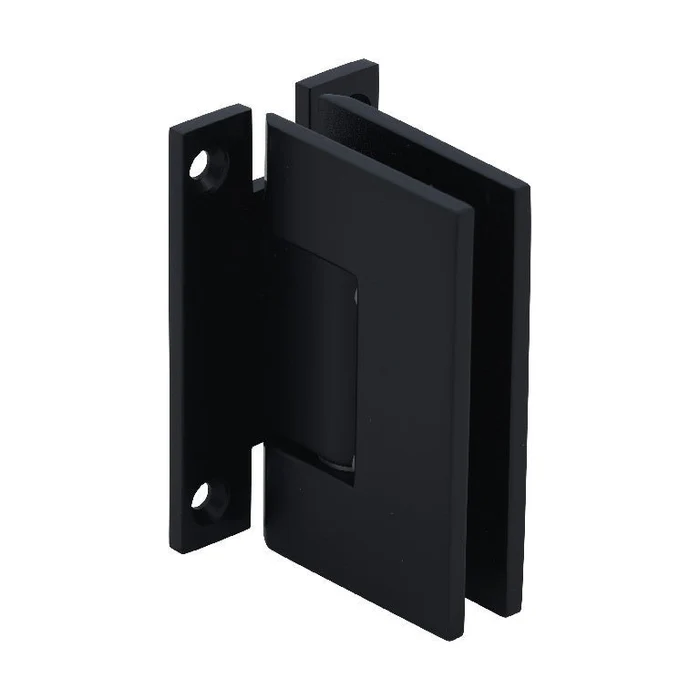

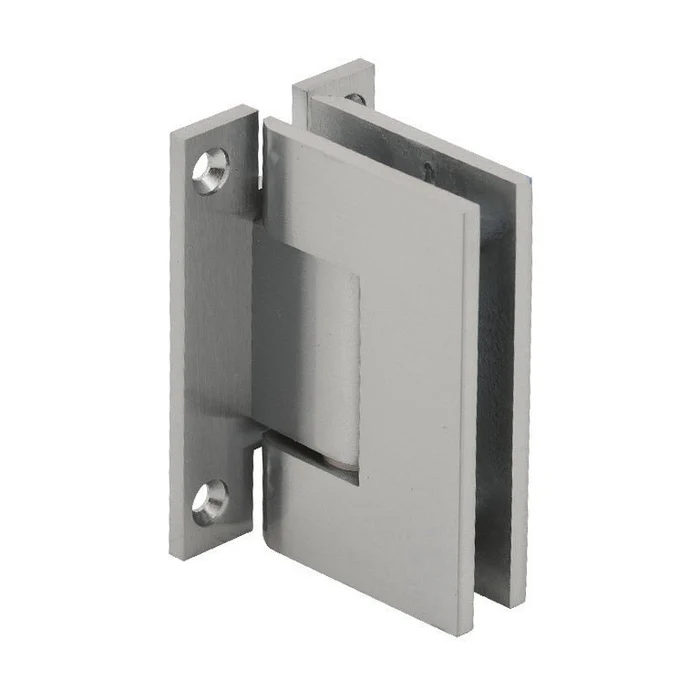

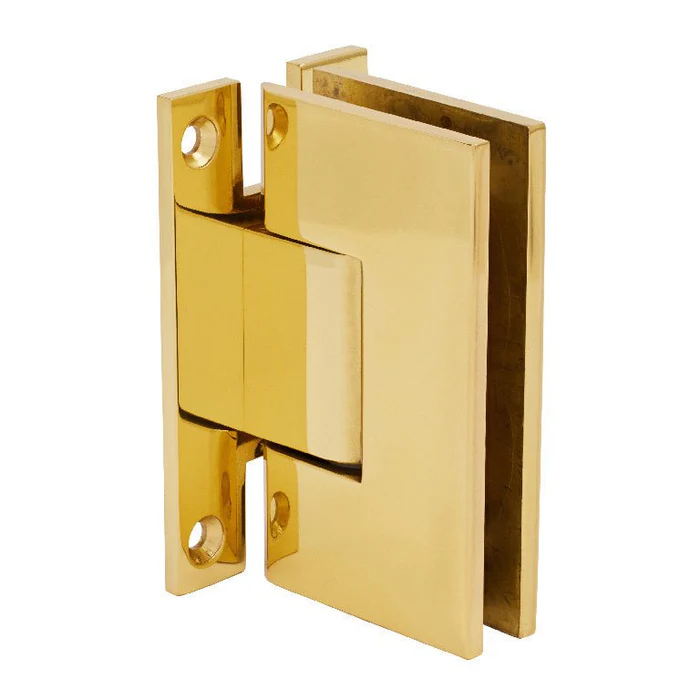

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
