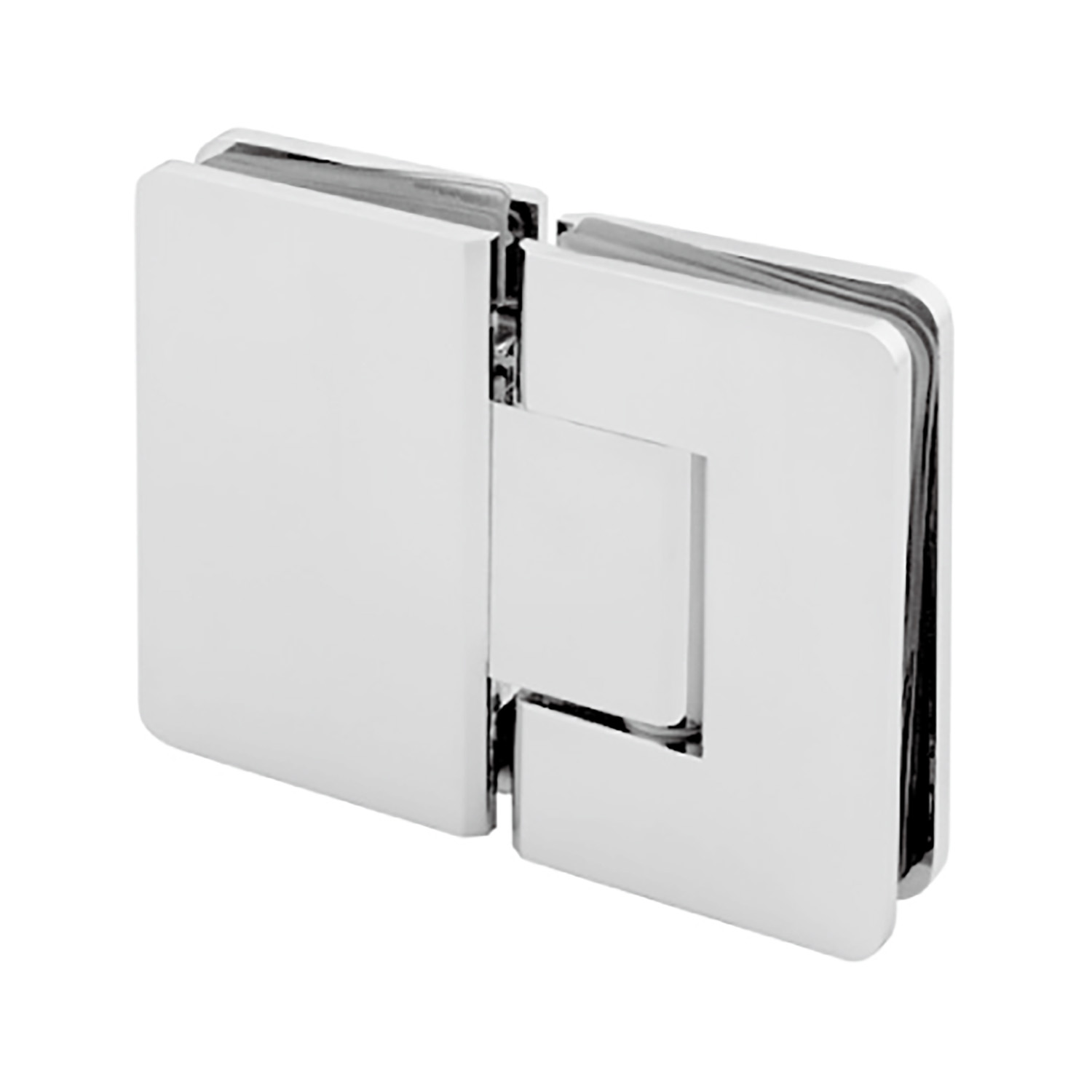

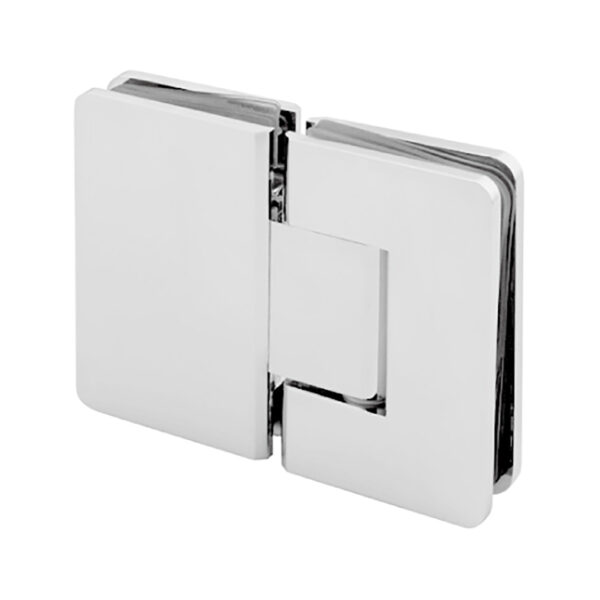

Name: RE180 Standard Round Corner 180 Degree Glass-to-Glass Shower Hinge
Brand: TOPGLASS
SKU: RE180
Availability: InStock

Self-Centering with Reversible 5 Degree Pivot Pin
Available in Several Beautiful Finishes
180 Degree Glass-to-Glass

Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).

Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.

5 Degree Pre-Set	No
Adjustable	No
Edge ProfileRR	Round Corner
Glass To Glass Angle	180
Glazing Thickness	5/16 in. To 1/2 in. (8 mm To 12 mm)

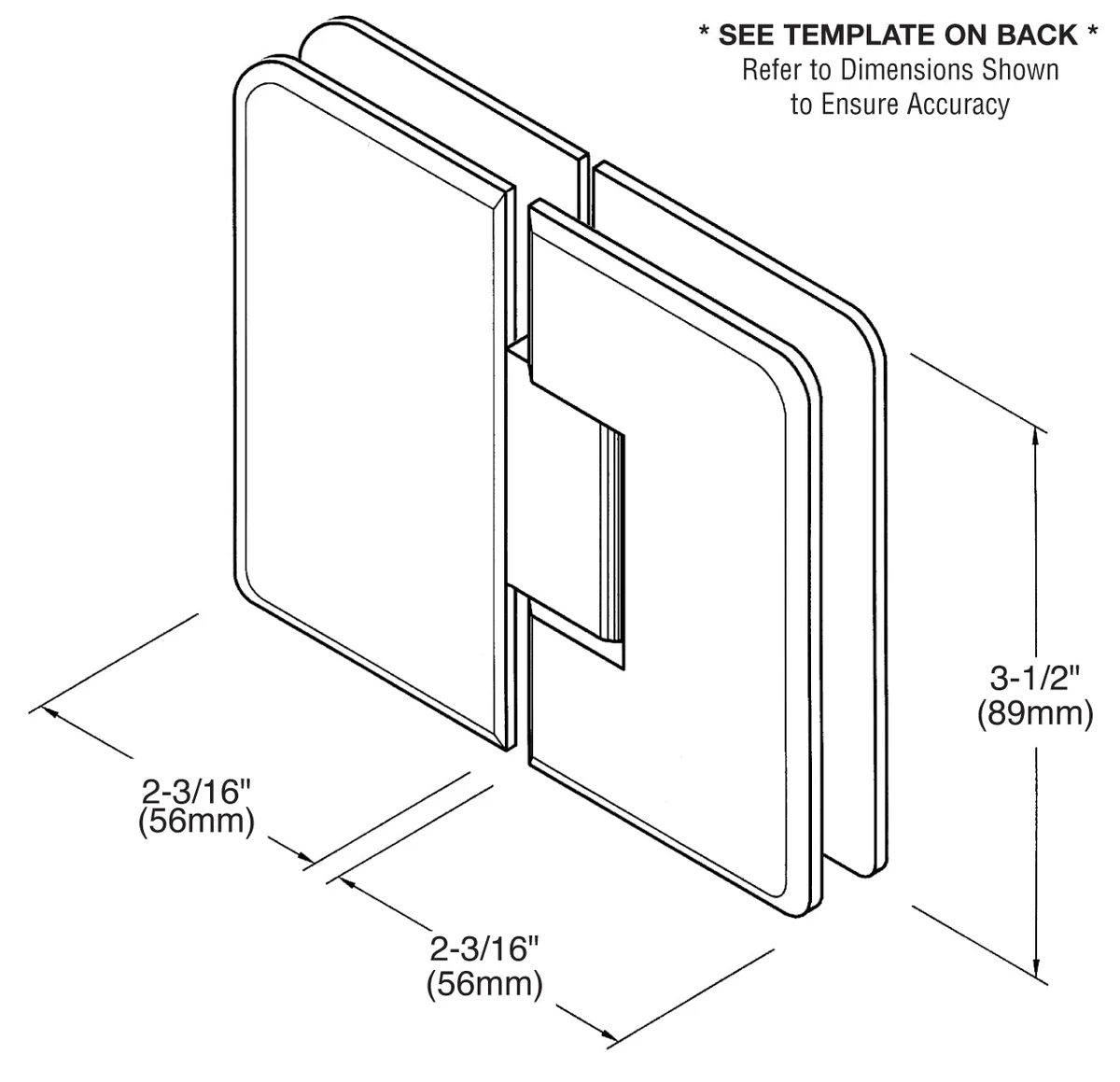

Height	3-1/2 in. (89 mm)
Material	Brass
Maximum Door Weight – 2 Hinges	80 lbs. (36.3 kg)
Maximum Door Weight – 3 Hinges	120 lbs. (54.4 kg)
Maximum Door Width – 2 Hinges	28
Maximum Door Width – 3 Hinges	32
Mounting Type	Glass To Glass
Self-Centering	Yes
Series	Rena
Width – Door Portion	2-3/16 in. (56 mm)
Width – Sidelite Portion	2-1/2 in. (63.5 mm)
