Name: JRPR037 Junior Beveled Wall Mount Full Back Plate Shower Hinge
Brand: TOPGLASS
SKU: JRPR037
Availability: InStock

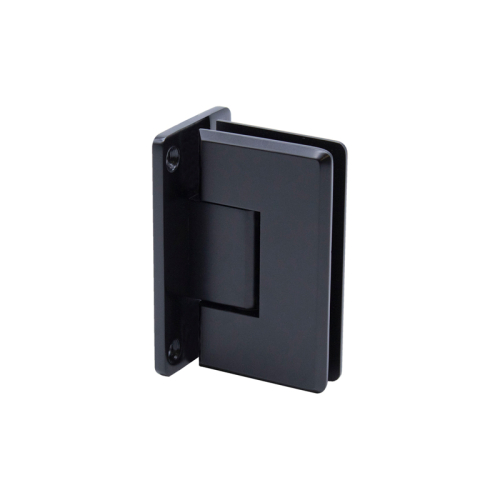

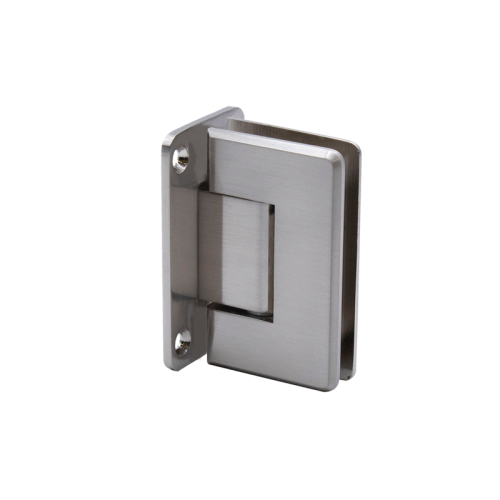

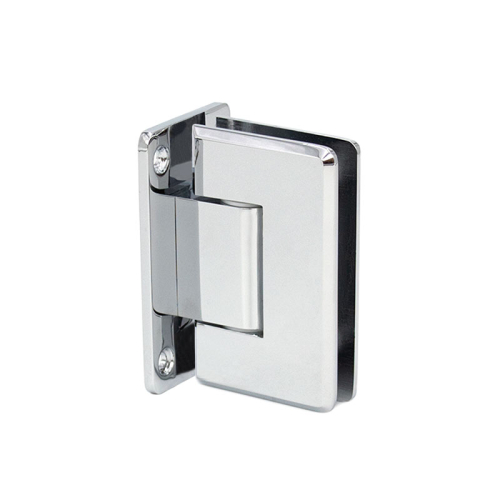

JRPR037 Junior Beveled Wall Mount Full Back Plate Shower Hinge

$9.00 – $11.00

+ Free Shipping

Using two hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32″ (813 mm).

Special Features: Contains a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.

Custom finishes are available on request.

Back Plate	Full
Edge Profile	Beveled
Glazing Thickness (Inches)	1/4 To 5/16
Height (Inches)	2-15/16
Material	Brass
Maximum Door Weight – 2 Hinges (Pounds)	62
Maximum Door Weight – 3 Hinges (Pounds)	92
Maximum Door Width – 2 Hinges (Inches)	28
Maximum Door Width – 3 Hinges (Inches)	32
Mounting Type	Wall Mount
Self-Centering	Yes
Series	Junior Prma
Width (Inches)	1-13/16
Hinge Swings	90 degree In and 90 degree Out
Closing Type	Self-Centering when within 15v of closed position.
