- 135º Glass-to-Glass
- Self-Centering with Reversible 5 Degree Pivot Pin
- Available in Several Beautiful Finishes
Using two hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).
Using three hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32″ (813 mm).
Special Features: Contains a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Custom finishes are available on request.
| Edge Profile | Beveled |
| Glass To Glass Angle (Degrees) | 135 |
| Glazing Thickness (Inches) | 1/4 To 5/16 |

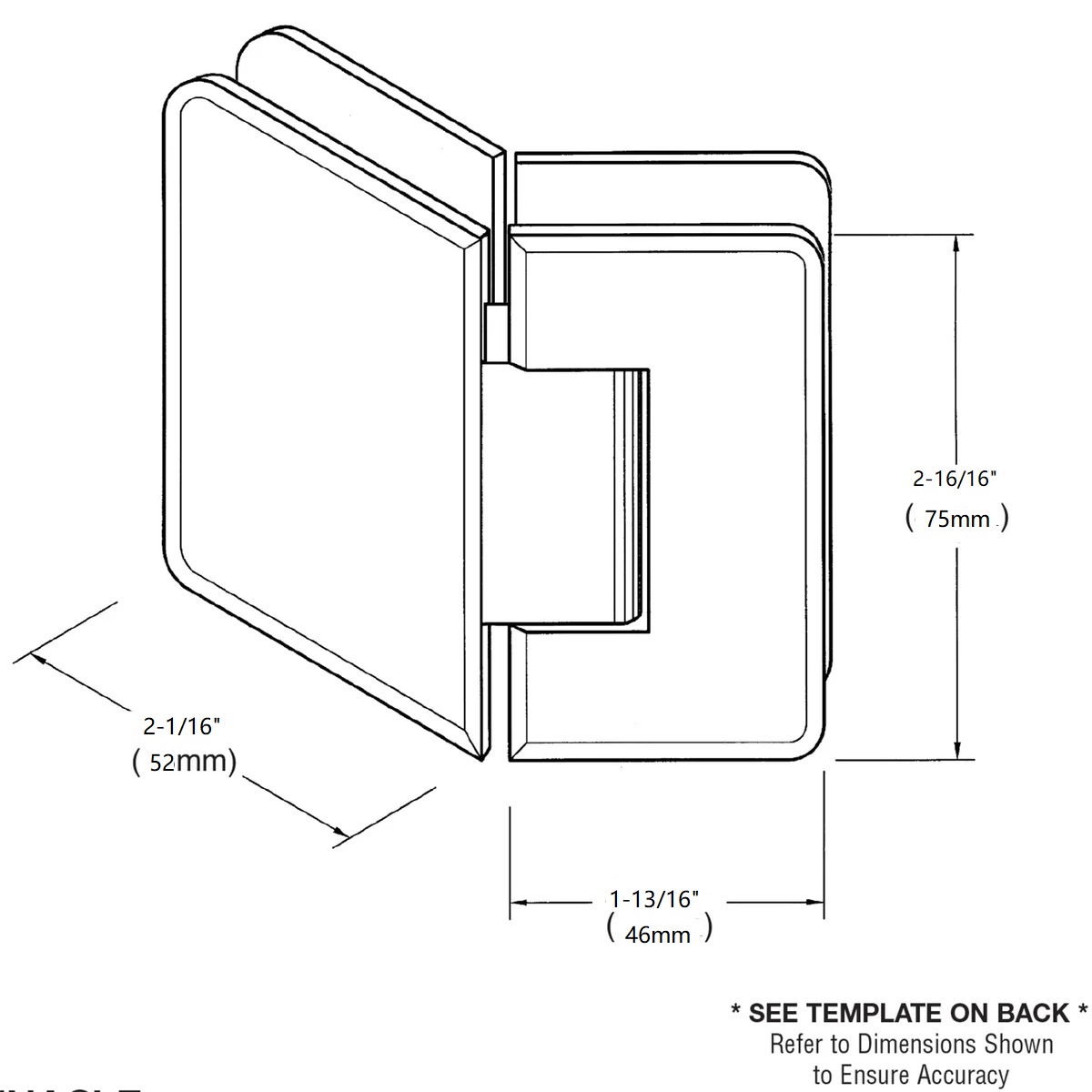

| Height (Inches) | 2-15/16 |
| Material | Brass |
| Maximum Door Weight – 2 Hinges (Pounds) | 62 |
| Maximum Door Weight – 3 Hinges (Pounds) | 92 |
| Maximum Door Width – 2 Hinges (Inches) | 28 |
| Maximum Door Width – 3 Hinges (Inches) | 32 |
| Mounting Type | Glass To Glass |
| Width – Door Portion (Inches) | 1-13/16 |
| Width – Sidelite Portion (Inches) | 1-13/16 |
| Special Features | Contains a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure |
| Construction | Solid Brass |
| Hinge Swings | 90 degree In and 90 degree Out |
| Closing Type | Self-Centering when within 15 degree of closed position |
