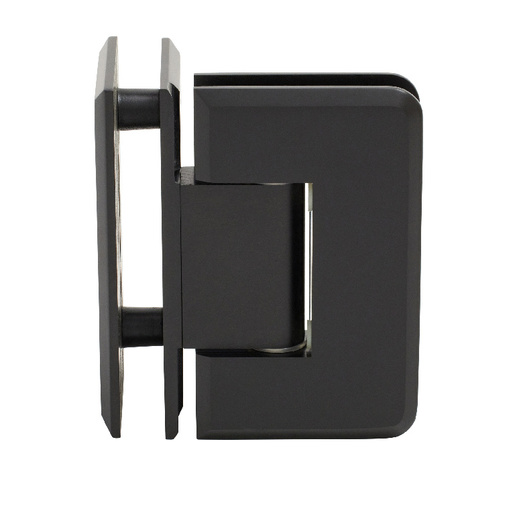

JRPR092 Junior Beveled 90 Degree Glass to Glass Shower Hinge

$19.00 – $21.00

+ Free Shipping

Color

SKU: JRPR092 Categories: Glass Shower Hinges, Shower Door Hardware Brand: TOPGLASS

Description
Additional information

90º Glass-to-Glass
Self-Centering with Reversible 5 Degree Pivot Pin
Available in Several Beautiful Finishes

Using two hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32″ (813 mm).

Special Features: Contains a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.

Edge Profile	Beveled
Glass To Glass Angle	90
Glazing Thickness	1/4 in. To 5/16 in. (6 mm To 8 mm)

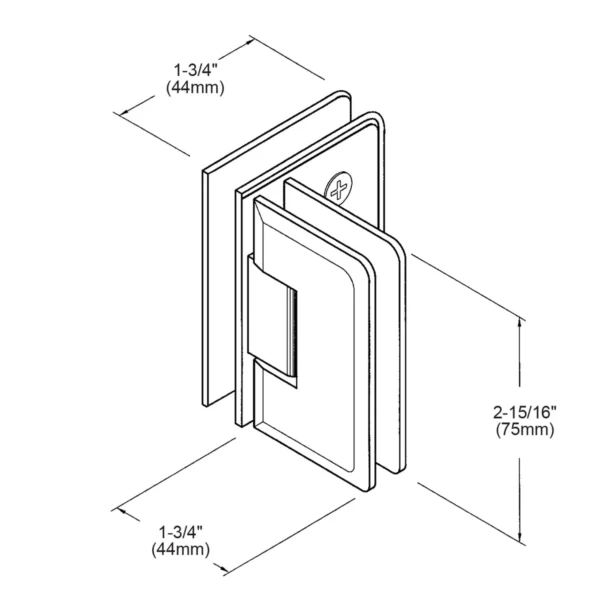

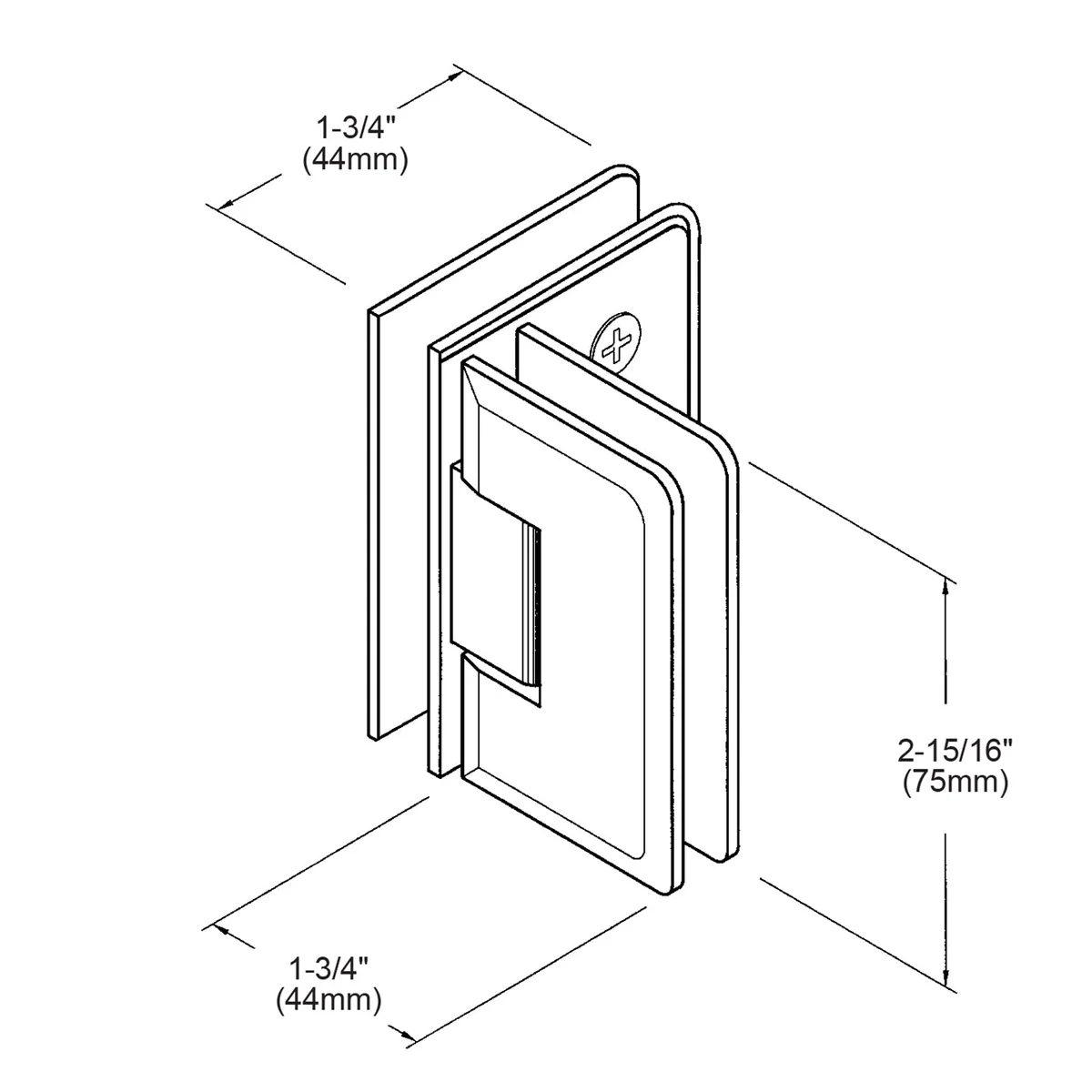

Height	2-15/16 in. (75 mm)
Material	Brass
Maximum Door Weight – 2 Hinges	62 lbs. (28.1 kg)
Maximum Door Weight – 3 Hinges	92 lbs. (41.7 kg)
Maximum Door Width – 2 Hinges	28
Maximum Door Width – 3 Hinges	32
Mounting Type	Glass To Glass
Self-Centering	Yes
Series	Junoir Prma
Width – Door Portion	1-13/16 in. (46 mm)
Width – Sidelite Portion	1-3/4 in. (44.5 mm)

Color	Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
