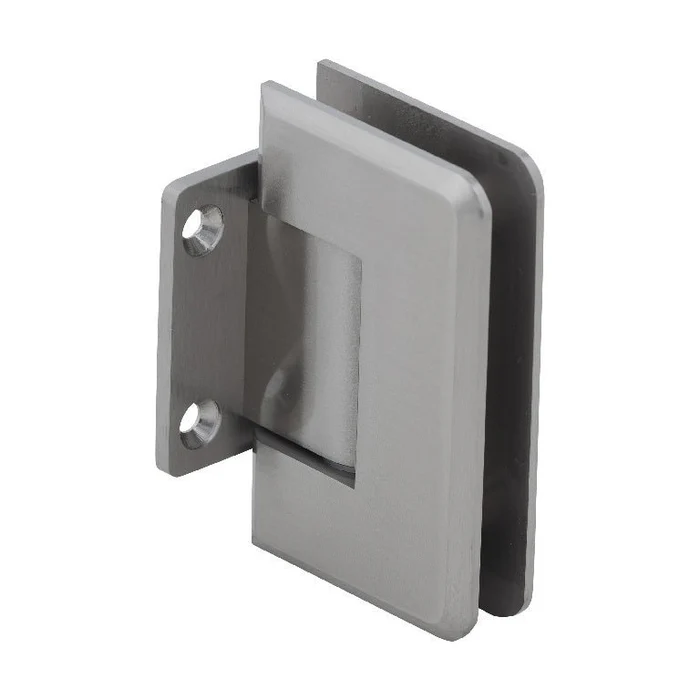

JRPR074 Junior Beveled Wall Mount Short Back Plate Shower Hinge - Image 3
JRPR074 Junior Beveled Wall Mount Short Back Plate Shower Hinge - Image 4

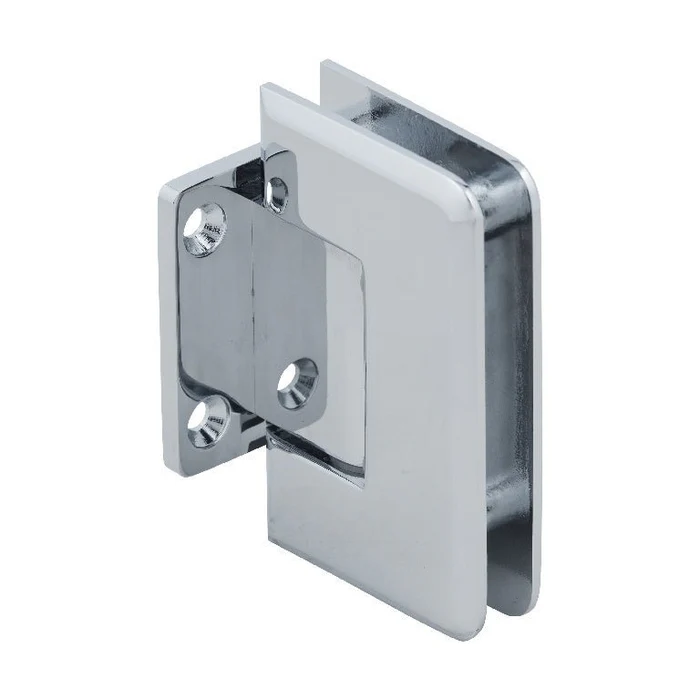

JRPR074 Junior Beveled Wall Mount Short Back Plate Shower Hinge - Image 5
JRPR074 Junior Beveled Wall Mount Short Back Plate Shower Hinge - Image 6

JRPR074 Junior Beveled Wall Mount Short Back Plate Shower Hinge

$9.00 – $11.90

+ Free Shipping
SKU: JRPR074 Categories: , Brand:
  • Wall Mount Short Back Plate
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes

Using two hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 1/4″ or 5/16″ glass (6 or 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32″ (813 mm).

Special Features: Contains a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.

Custom finishes are available on request.

Specifications

Back PlateShort
Edge ProfileBeveled
Glazing Thickness (Inches)1/4 To 5/16

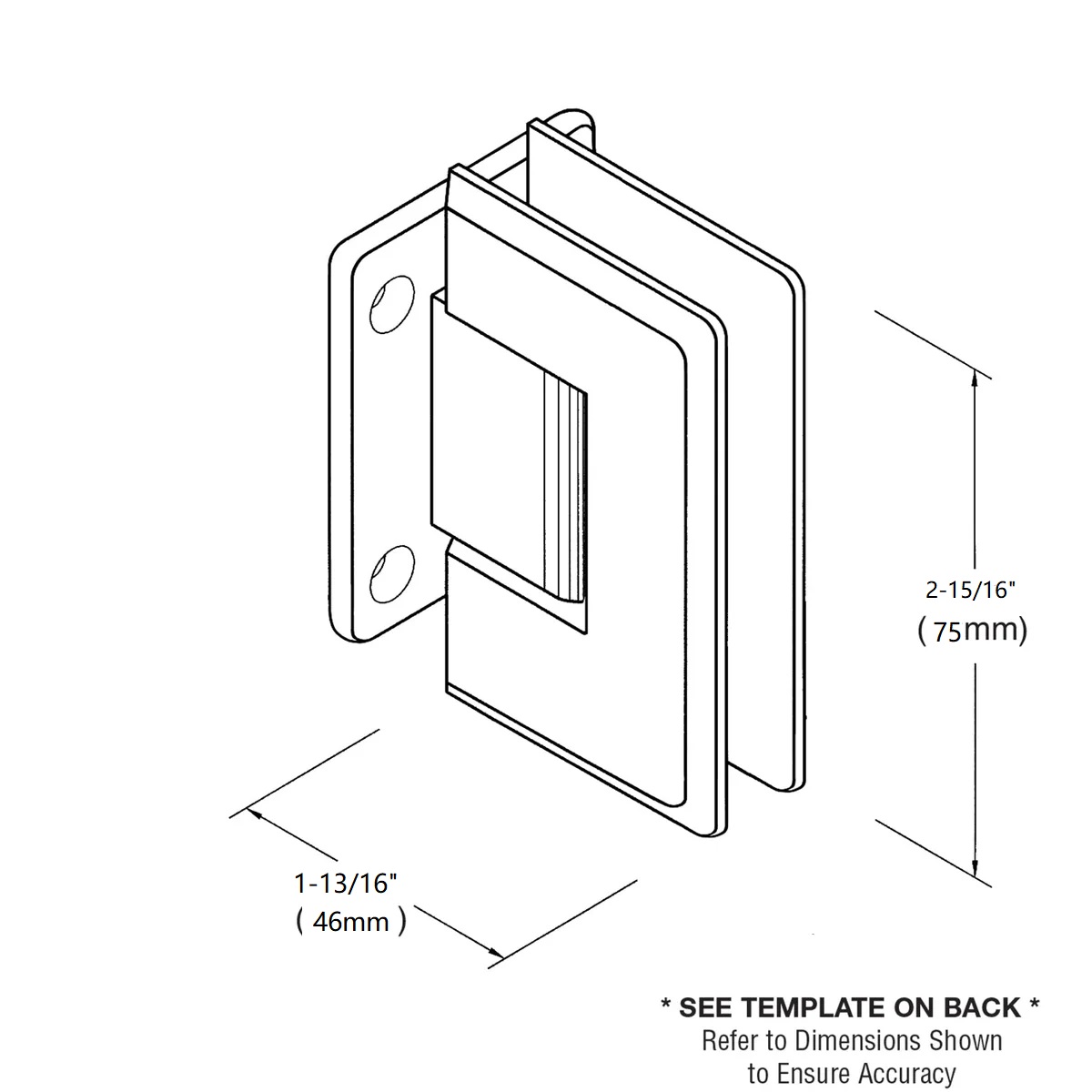

Height (Inches)2-15/16
MaterialBrass
Maximum Door Weight – 2 Hinges (Pounds)62
Maximum Door Weight – 3 Hinges (Pounds)92
Maximum Door Width – 2 Hinges (Inches)28
Maximum Door Width – 3 Hinges (Inches)32
Mounting TypeWall Mount
Self-CenteringYes
SeriesJunior Prma
Width (Inches)1-13/16
Hinge Swings 90 degree In and 90 degree Out
Closing Type Self-Centering when within 15v of closed position.
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
