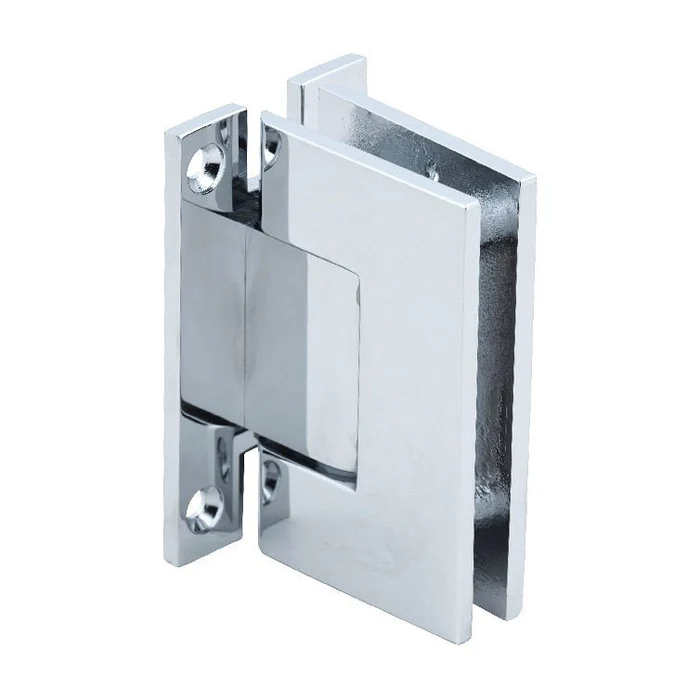

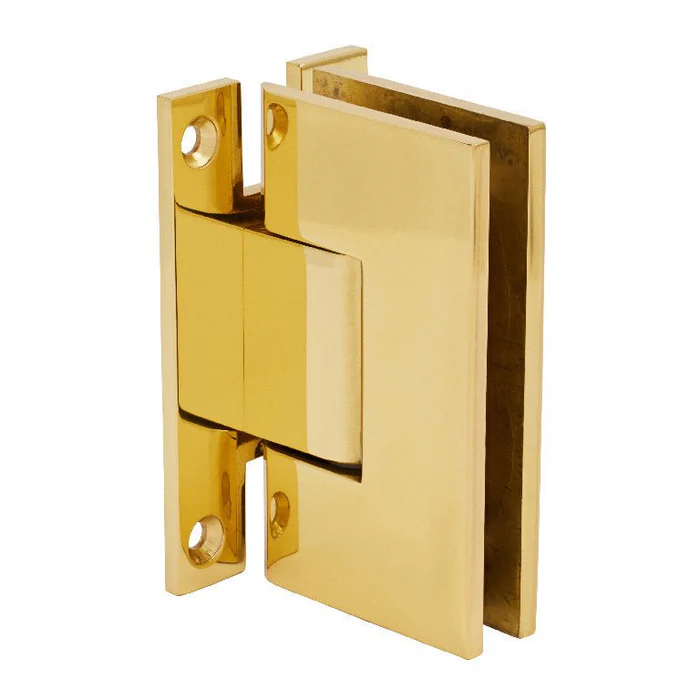

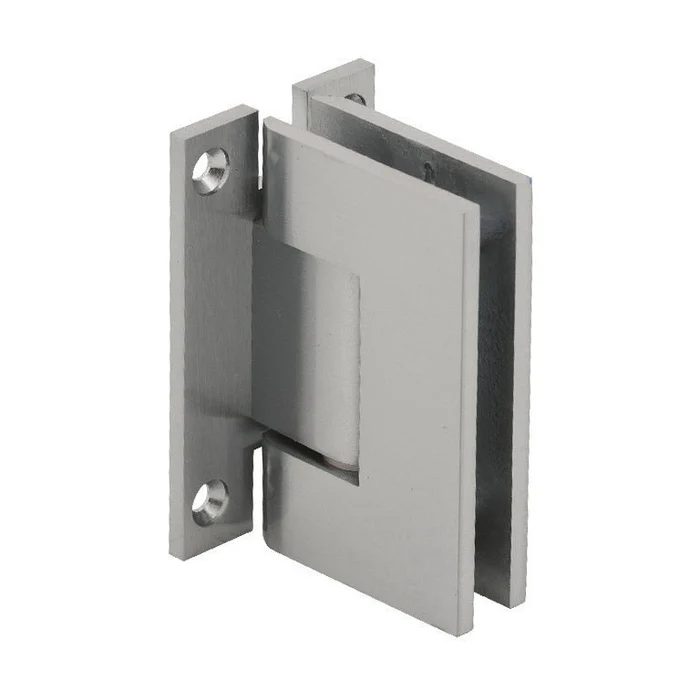

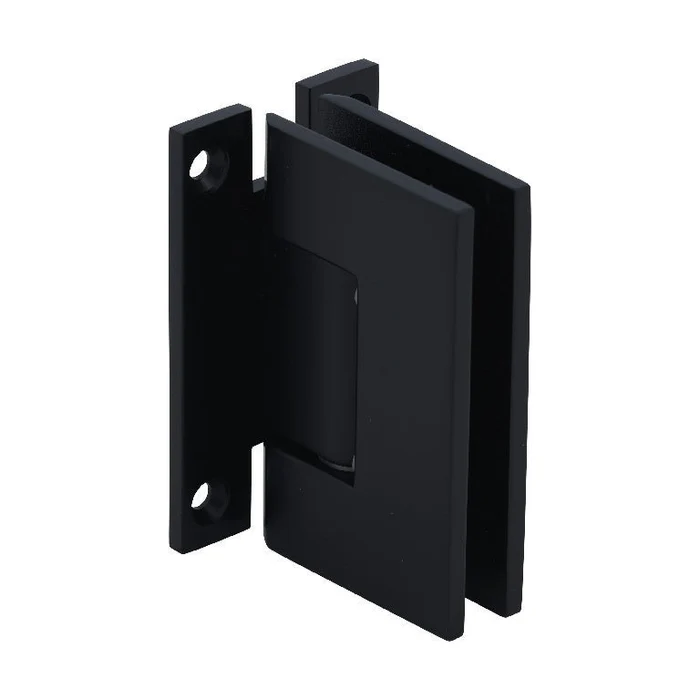

VE037H Heavy Duty Wall Mount H Back Plate Shower Hinge
VE037H Heavy Duty Wall Mount H Back Plate Shower Hinge - Image 2
VE037H Heavy Duty Wall Mount H Back Plate Shower Hinge - Image 3
VE037H Heavy Duty Wall Mount H Back Plate Shower Hinge - Image 4
VE037H Heavy Duty Wall Mount H Back Plate Shower Hinge - Image 5

VE037H Heavy Duty Wall Mount H Back Plate Shower Hinge

Price range: $15.00 through $17.00

+ Free Shipping
SKU: VE037H Categories: , Brand:
  • New Wall Plate Design Allows for Tighter Clearance
  • Same Quality with a Different Look
  • Square Design is the Most Contemporary Look
  • Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass
  • Available in Several Beautiful Finishes
  • Use Tempered Glass



Specifications

5 Degree Pre-SetNo
AdjustableNo
Back Plate‘H’
Glazing Thickness1/2 in. (12 mm)

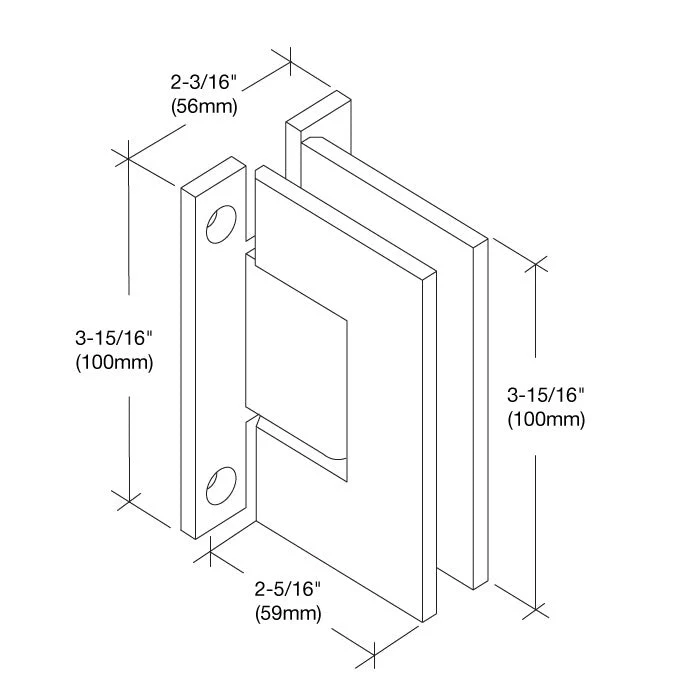

Height3-15/16 in. (100 mm)
MaterialBrass
Maximum Clamping Screw Torque60 lbf.in (677.9 cN.m)
Maximum Door Weight – 2 Hinges110 lbs. (49.9 kg)
Maximum Door Weight – 3 Hinges140 lbs. (63.5 kg)
Maximum Door Width36 in. (914 mm)
Mounting TypeWall Mount
Self-CenteringYes
SeriesVena
Width2-1/4 in. (57 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
