VE337H Adjustable Heavy Duty Wall Mount H Black Plate Shower Hinge
VE337H Adjustable Heavy Duty Wall Mount H Black Plate Shower Hinge - Image 2
VE337H Adjustable Heavy Duty Wall Mount H Black Plate Shower Hinge - Image 3
VE337H Adjustable Heavy Duty Wall Mount H Black Plate Shower Hinge - Image 4
VE337H Adjustable Heavy Duty Wall Mount H Black Plate Shower Hinge - Image 5
VE337H Adjustable Heavy Duty Wall Mount H Black Plate Shower Hinge - Image 6

VE337H Adjustable Heavy Duty Wall Mount H Black Plate Shower Hinge

$16.00 – $18.00

+ Free Shipping
SKU: VE337H Categories: , Brand:
  • Adjustable to Any Angle Up to 90 Degrees without Removing Door
  • Available in Several Beautiful Finishes
  • Adjustable Wall Mount H Back Plate

Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).

Using three hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36″ (914 mm).



Specifications

5 Degree Pre-SetNo
AdjustableYes
Back PlateoffsetH
Glazing Thickness1/2 in. (12 mm)

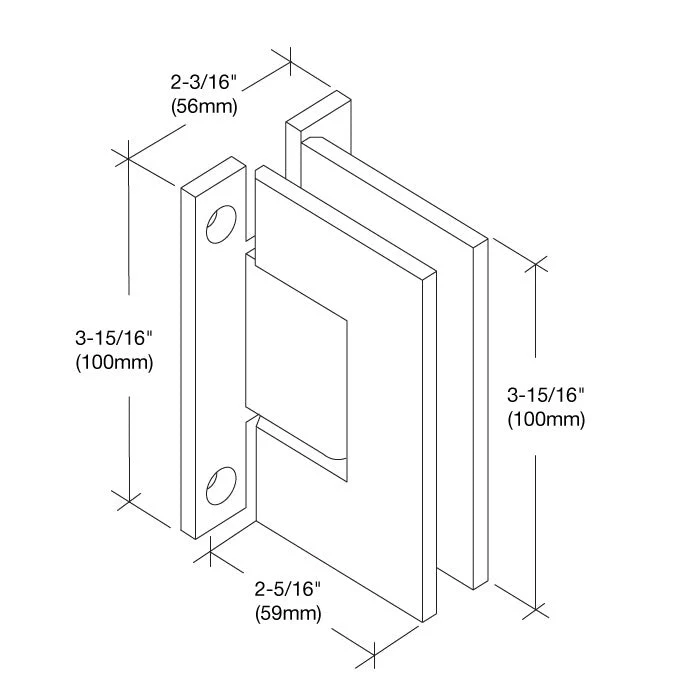

Height3-15/16 in. (100 mm)
MaterialBrass
Maximum Clamping Screw Torque60 lbf.in (677.9 cN.m)
Maximum Door Weight – 2 Hinges110 lbs. (49.9 kg)
Maximum Door Weight – 3 Hinges140 lbs. (63.5 kg)
Maximum Door Width36 in. (914 mm)
Mounting TypeWall Mount
Positive CloseNo
Self-CenteringYes
SeriesVena Adjustable
Width2-1/4 in. (57 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
