- Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass

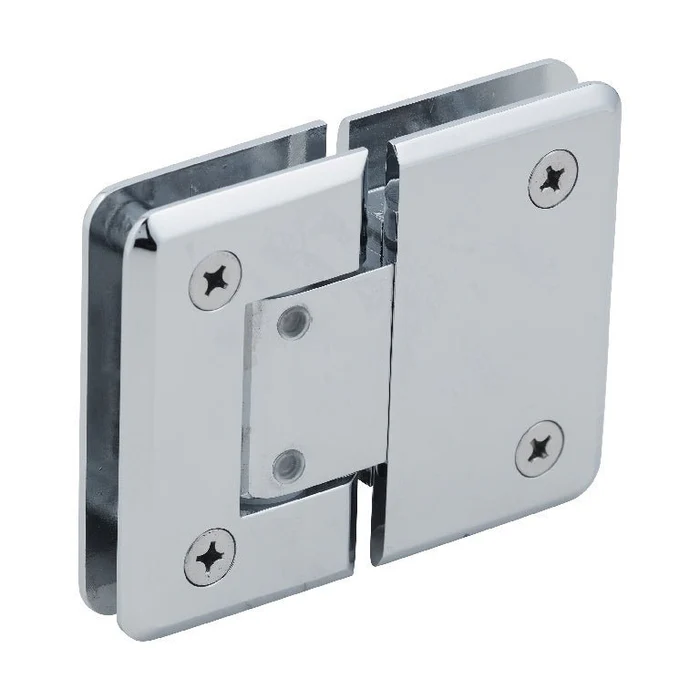

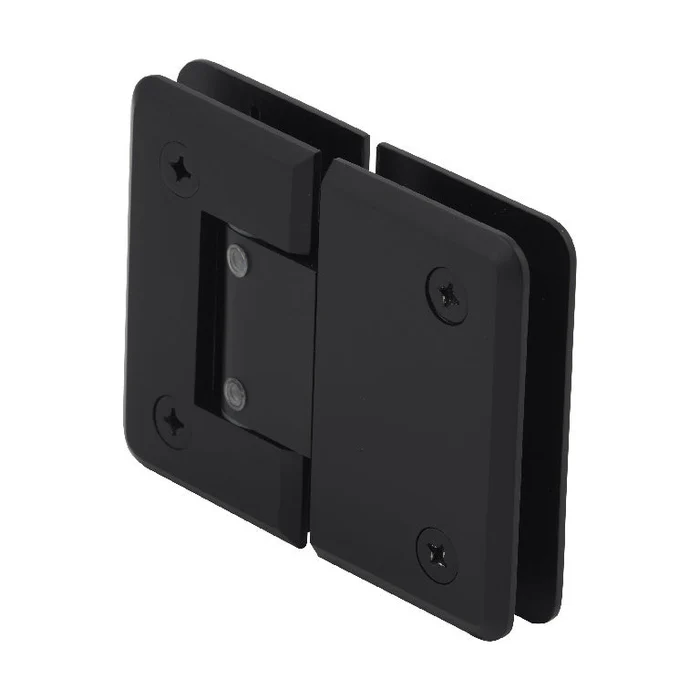

- Available in Several Beautiful Finishes
- Adjustable 180º Glass-to-Glass
- Custom finishes are available.
Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).
Using three hinges with 3/8″ and 1/2″ glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36″ (914 mm).
| Adjustable | Yes |
| Design Style | Beveled |
| Edge Profile | Beveled |
| Enclosure Type | Niche, Bathtub, Tailor Made Solutions |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

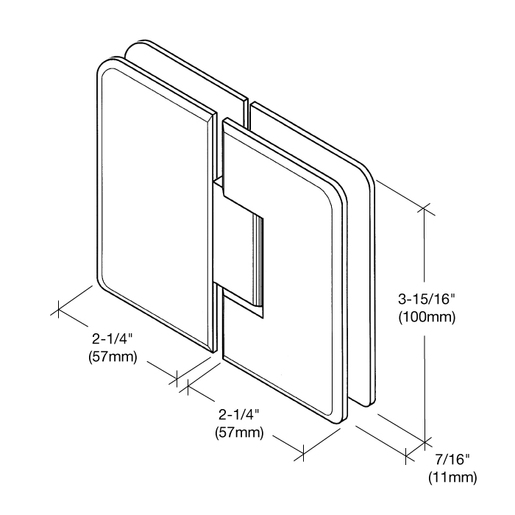

| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60 lbf.in (677.9 cN.m) |
| Maximum Door Weight – 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight – 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Glass To Glass |
| Opening Style | Swing(side) |
| Positive Close | No |
| Self-Centering | Yes |
| Series | Colo Adjustable |
| Width – Door Portion | 2-5/16 in. (59 mm) |
| Width – Sidelite Portion | 2-5/16 in. (59 mm) |
