- Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass

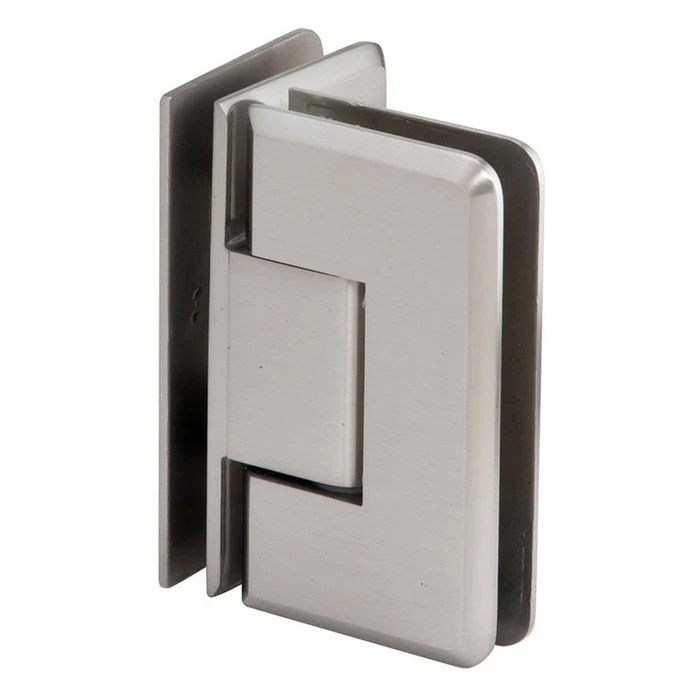

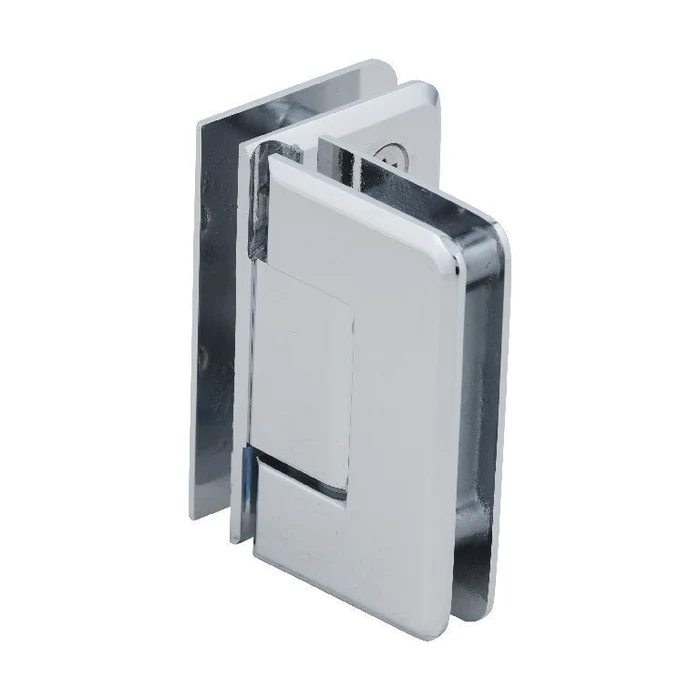

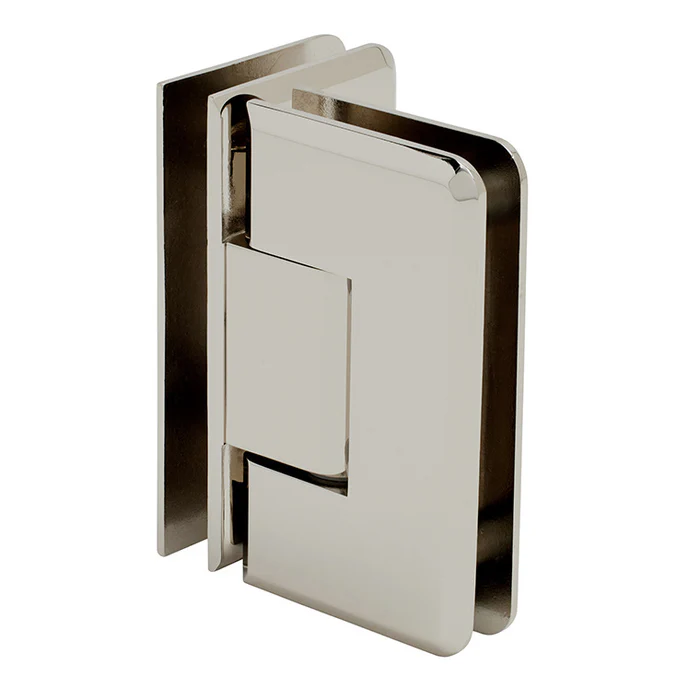

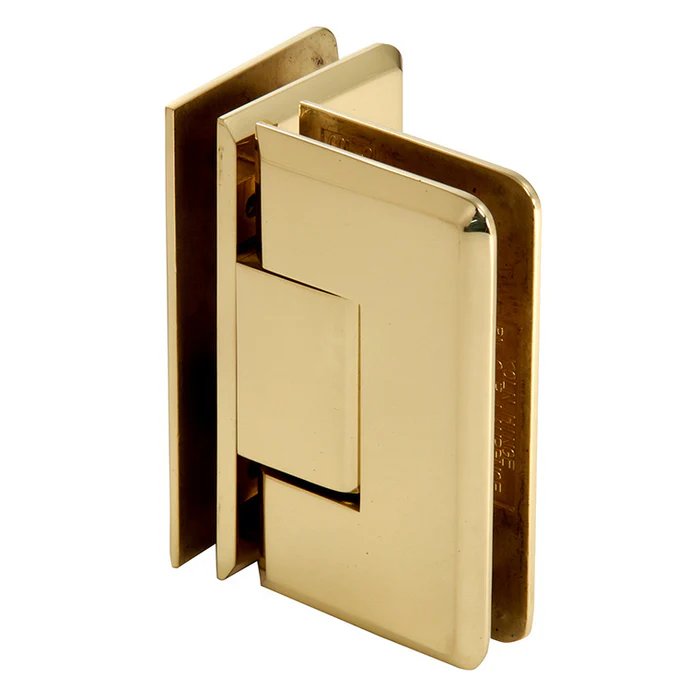

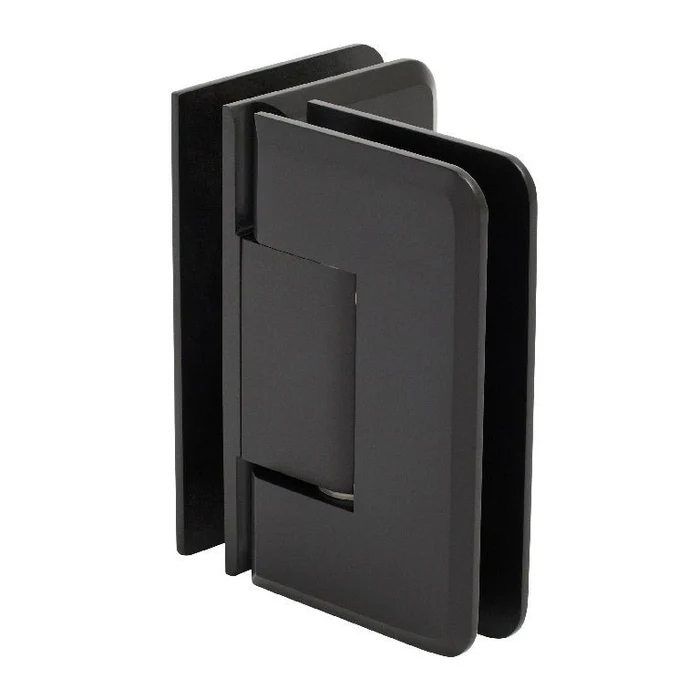

- Available in Several Beautiful Finishes
- 90º Glass-to-Glass
Using two hinges with 3/8″ to 1/2″ glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).
Using three hinges with 3/8″ and 1/2″ glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36″ (914 mm).
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Glass To Glass Angle | 90 |
| Edge Profile | Beveled |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

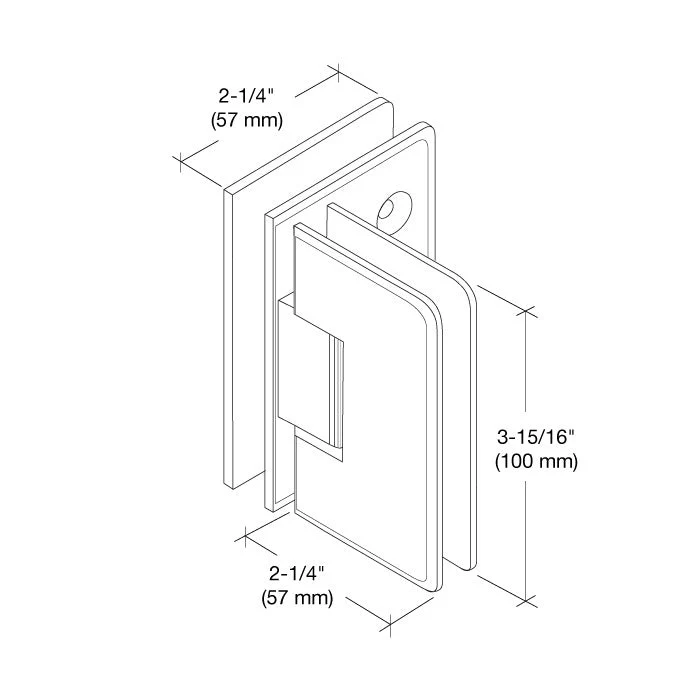

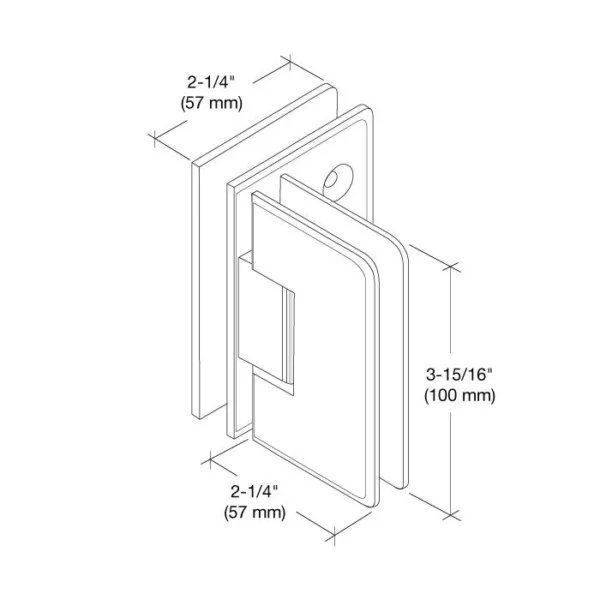

| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60 lbf.in (677.9 cN.m) |
| Maximum Door Weight – 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight – 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Glass To Glass |
| Positive Close | No |
| Self-Centering | Yes |
| Series | Colo |
| Width | 2-1/4 in. (57 mm) |
