Name: CO044 Heavy Duty Beveled Wall Mount Offset Back Plate Shower Hinge
Brand: TOPGLASS
SKU: CO044
Availability: InStock

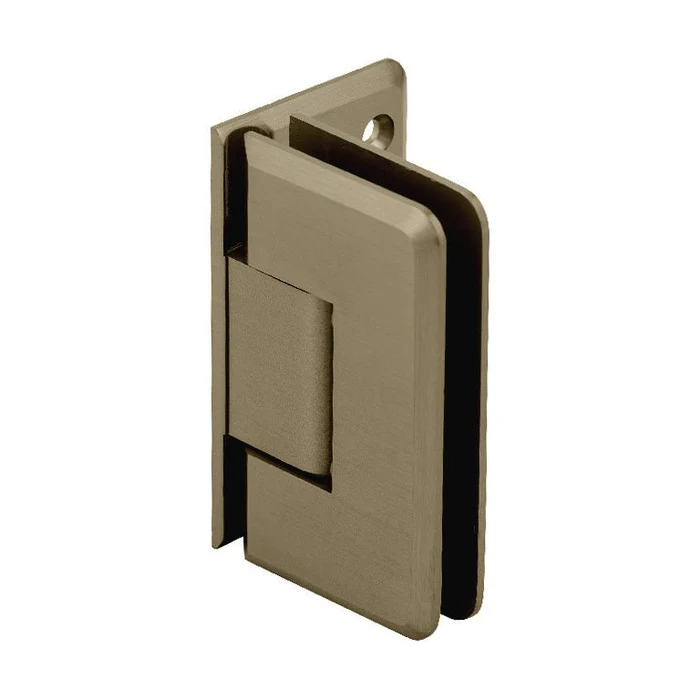

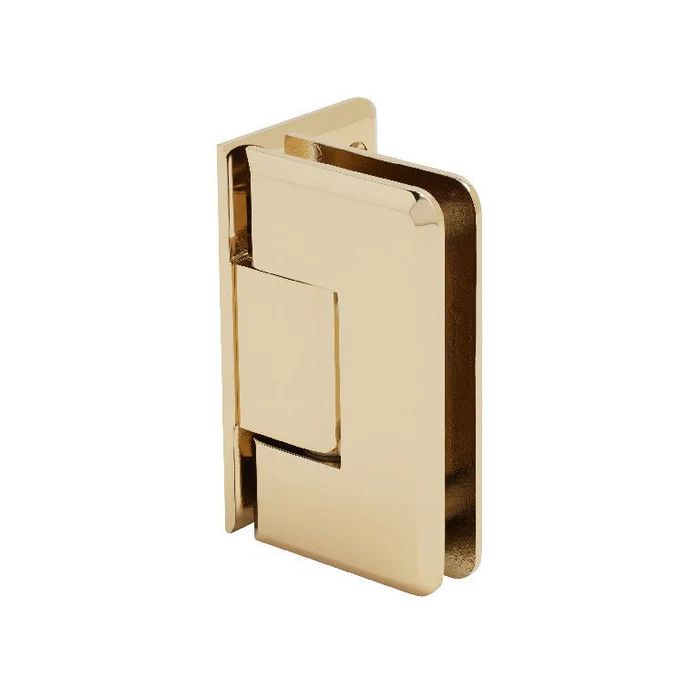

CO044 Heavy Duty Beveled Wall Mount Offset Back Plate Shower Hinge

$12.00 – $13.90

+ Free Shipping

Using two hinges with 3/8″ glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34″ (864 mm).

Using two hinges with 1/2″ glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32″ (813 mm).

Using three hinges with 3/8″ glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34″ (864 mm).

Using three hinges with 1/2″ glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32″ (813 mm).

Custom finishes are available on request.

5 Degree Pre-Set	No
Adjustable	No
Back Plate	Offset
Edge Profile	Beveled
Glazing Thickness	3/8 in. To 1/2 in. (10 mm To 12 mm)

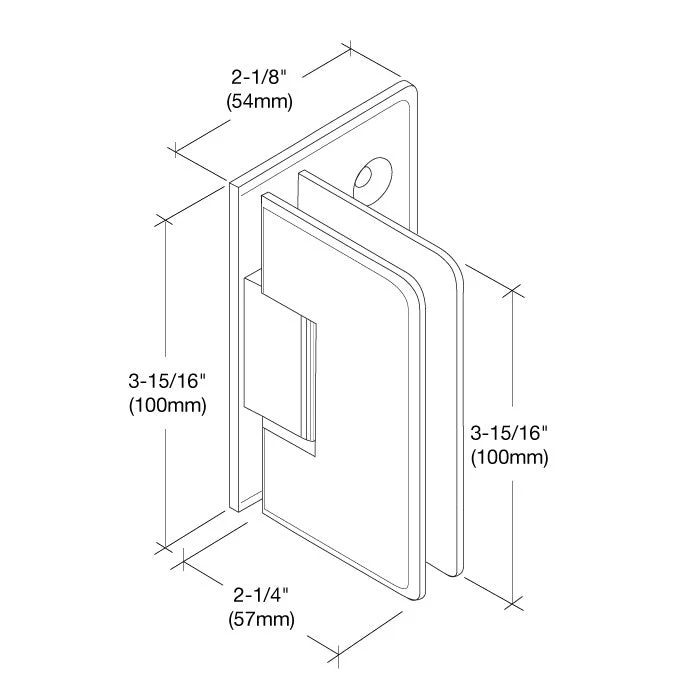

Height	3-15/16 in. (100 mm)
Material	Brass
Maximum Clamping Screw Torque	60 lbf.in (677.9 cN.m)
Maximum Door Weight – 2 Hinges	100 lbs. (45.4 kg)
Maximum Door Weight – 3 Hinges	130 lbs. (59 kg)
Maximum Door Width – 1/2 Glass	32 in. (813 mm)
Maximum Door Width – 3/8 Glass	34 in. (864 mm)
Mounting Type	Wall Mount
Self-Centering	Yes
Series	Colo
Width	2-1/4 in. (57 mm)
