CO344 Adjustable Heavy Duty Beveled Wall Mount Offset Back Plate Shower Hinge

$15.00 – $18.00

+ Free Shipping
SKU: CO344 Categories: , Brand:
  • Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass
  • Available in Several Beautiful Finishes
  • Adjustable Wall Mount Offset Back Plate
  • Custom finishes are available on request.

Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).

Using three hinges with 3/8″ and 1/2″ glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36″ (914 mm).



Specifications

5 Degree Pre-SetNo
AdjustableYes
Back PlateOffset
Edge ProfileBeveled
Glazing Thickness3/8 in. To 1/2 in. (10 mm To 12 mm)

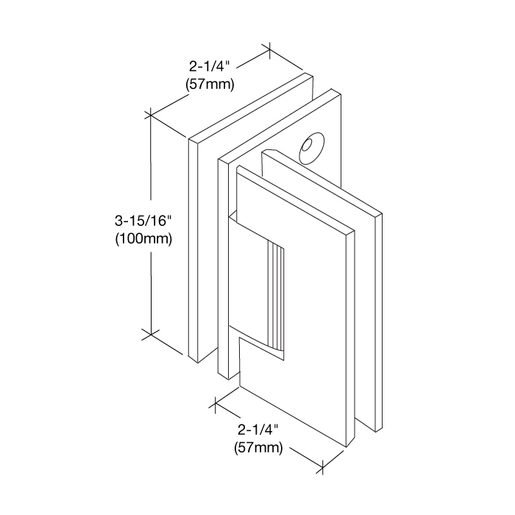

Height3-15/16 in. (100 mm)
MaterialBrass
Maximum Door Weight – 2 Hinges110 lbs. (49.9 kg)
Maximum Door Weight – 3 Hinges140 lbs. (63.5 kg)
Maximum Door Width36 in. (914 mm)
Mounting TypeWall Mount
Positive CloseNo
Self-CenteringYes
SeriesColo Adjustable
Width2-5/16 in. (59 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
