C0037H Heavy Duty Beveled Wall Mount H Back Plate Shower Hinge

$12.00 – $13.90

+ Free Shipping
SKU: C0037H Categories: , Brand:
  • Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes
  • Wall Mount ‘H’ Back Plate Standard Model

Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).

Using three hinges with 3/8″ and 1/2″ glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36″ (914 mm).

Custom finishes are available on request.



Specifications

5 Degree Pre-SetNo
AdjustableNo
Back Plate‘H’
Edge ProfileBeveled
Glazing Thickness3/8 in. To 1/2 in. (10 mm To 12 mm)

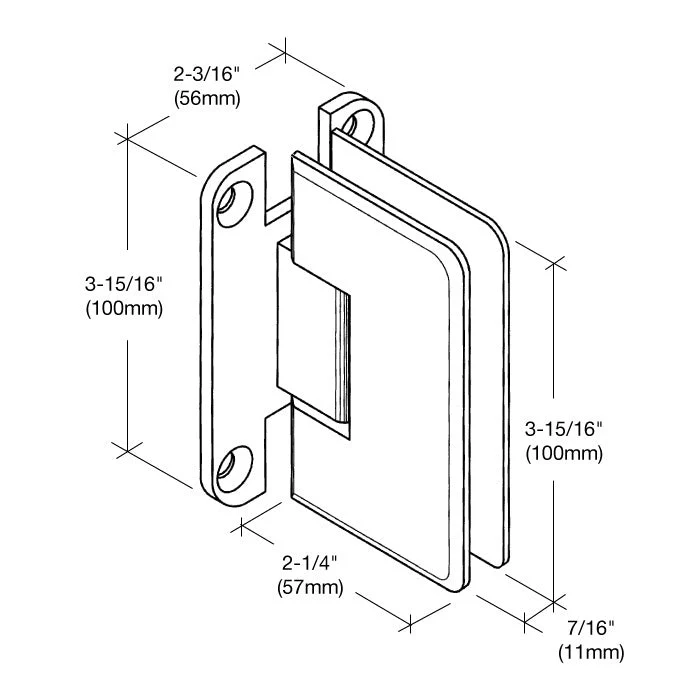

Height3-15/16 in. (100 mm)
MaterialBrass
Maximum Clamping Screw Torque60 lbf.in (677.9 cN.m)
Maximum Door Weight – 2 Hinges110 lbs. (49.9 kg)
Maximum Door Weight – 3 Hinges140 lbs. (63.5 kg)
Maximum Door Width36 in. (914 mm)
Mounting TypeWall Mount
Positive CloseNo
Self-CenteringYes
Colo
Width2-1/4 in. (57 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
