CA01 Standard Top or Bottom Mount Square Shower Door Pivot Hinge

$16.00 – $18.00

+ Free Shipping

SKU: CA01 Categories: Shower Door Hardware, Pivot Hinges Brand: TOPGLASS

Description
Additional information

Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
Available in Several Beautiful Finishes
Custom finishes are available on request

Using two hinges with 5/16″ or 3/8″ glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31″ (787 mm).

Edge Profile	Square
Glazing Thickness	5/16 in. To 3/8 in. (8 mm To 10 mm)

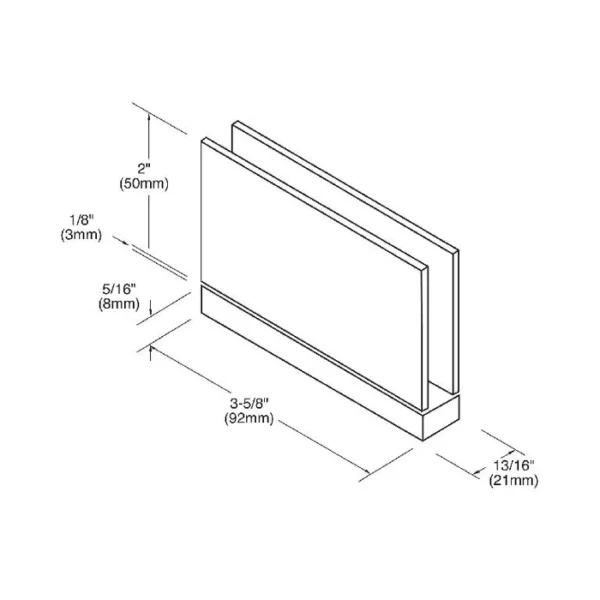

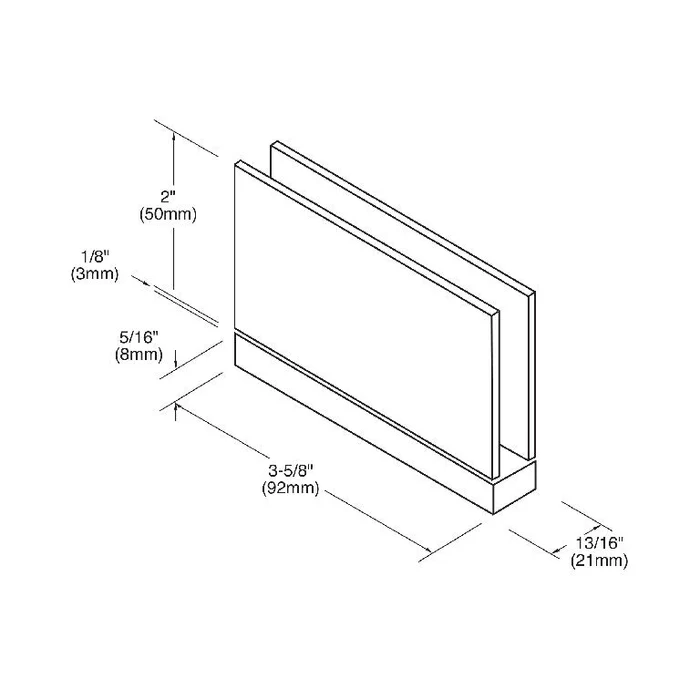

Height	2 in. (51 mm)
Material	Brass
Maximum Door Weight	100 lbs. (45.4 kg)
Maximum Door Width	31 in. (787 mm)
Mounting Type	Head & Sill Mount
Self-Centering	Yes
Series	Cadi
Width	3-5/8 in. (92 mm)

Color	Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
