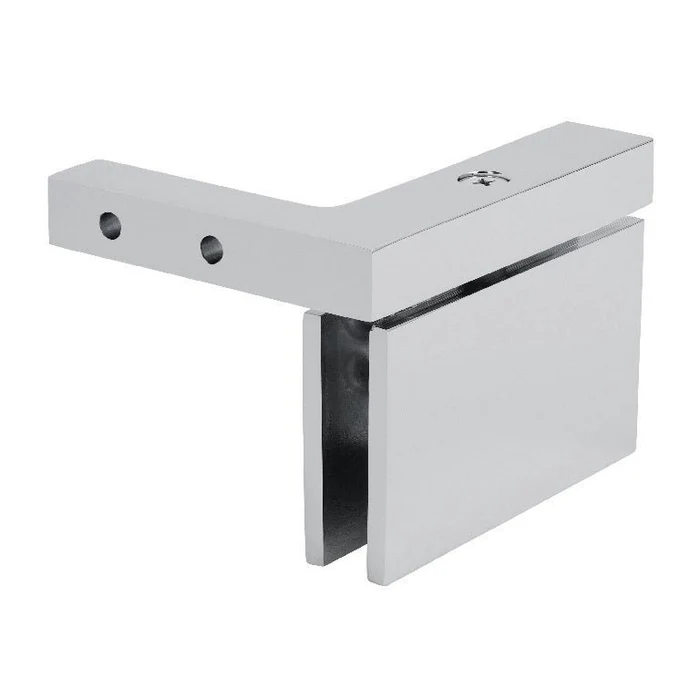

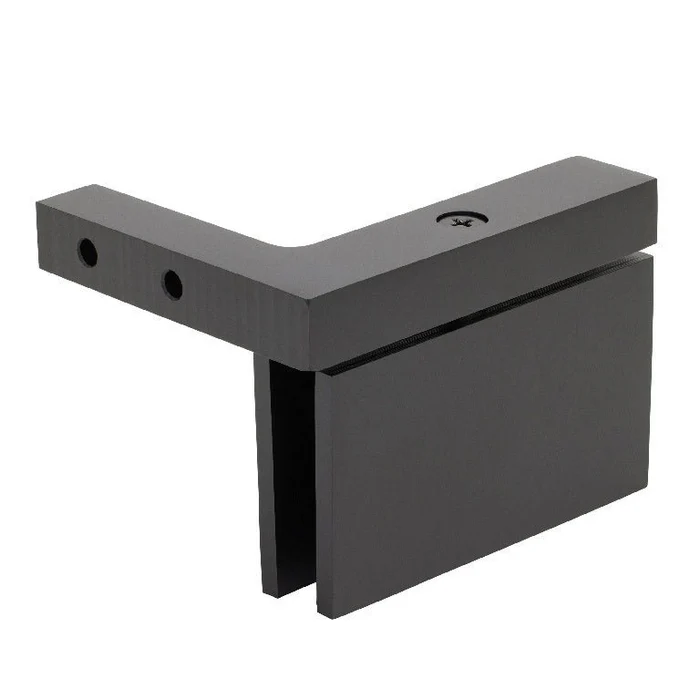

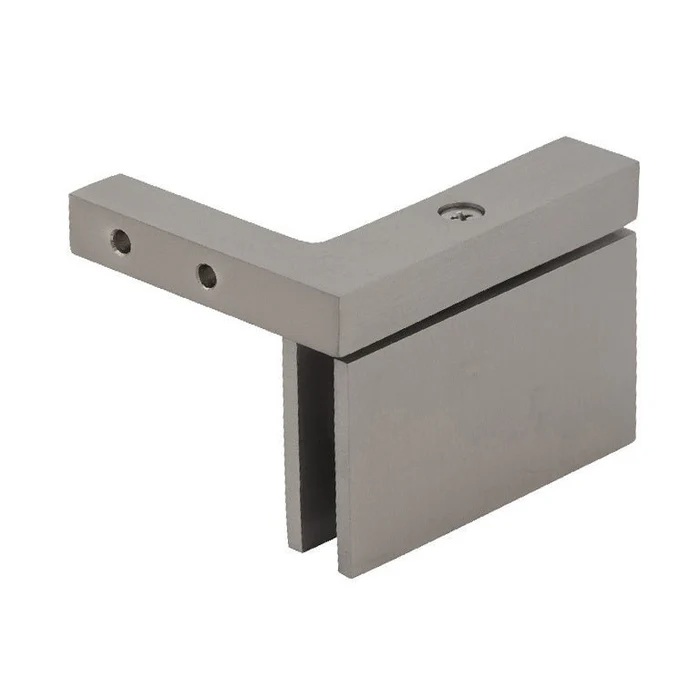

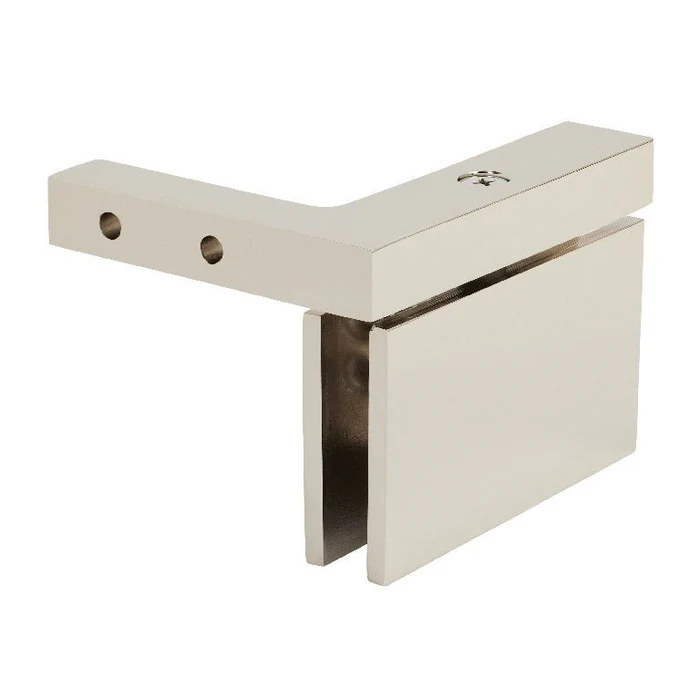

CA05L Standard Left Hand Offset Bracket Wall Mount Shower Pivot Hinge

CA05L Standard Left Hand Offset Bracket Wall Mount Shower Pivot Hinge - Image 2

CA05L Standard Left Hand Offset Bracket Wall Mount Shower Pivot Hinge - Image 3

CA05L Standard Left Hand Offset Bracket Wall Mount Shower Pivot Hinge - Image 4

CA05L Standard Left Hand Offset Bracket Wall Mount Shower Pivot Hinge - Image 5

CA05L Standard Left Hand Offset Bracket Wall Mount Shower Pivot Hinge

$16.00 – $17.00

+ Free Shipping

Color

SKU: CA05L Categories: Pivot Hinges, Shower Door Hardware Brand: TOPGLASS

Description
Additional information

Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
Available in Several Beautiful Finishes

Using two hinges with 5/16″ or 3/8″ glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31″ (787 mm).

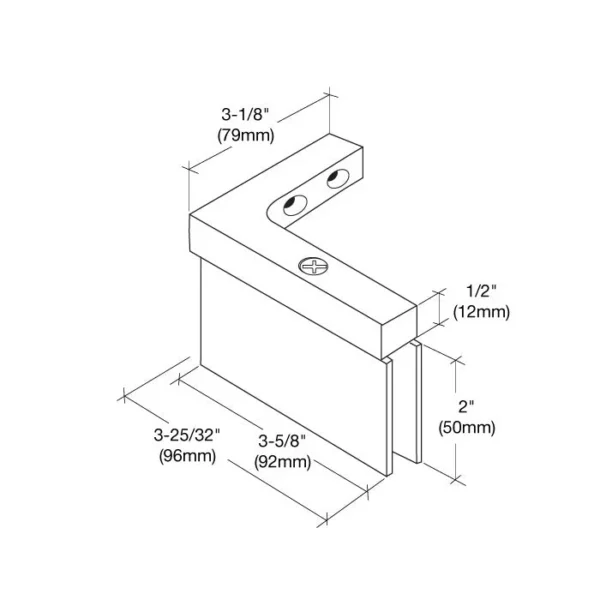

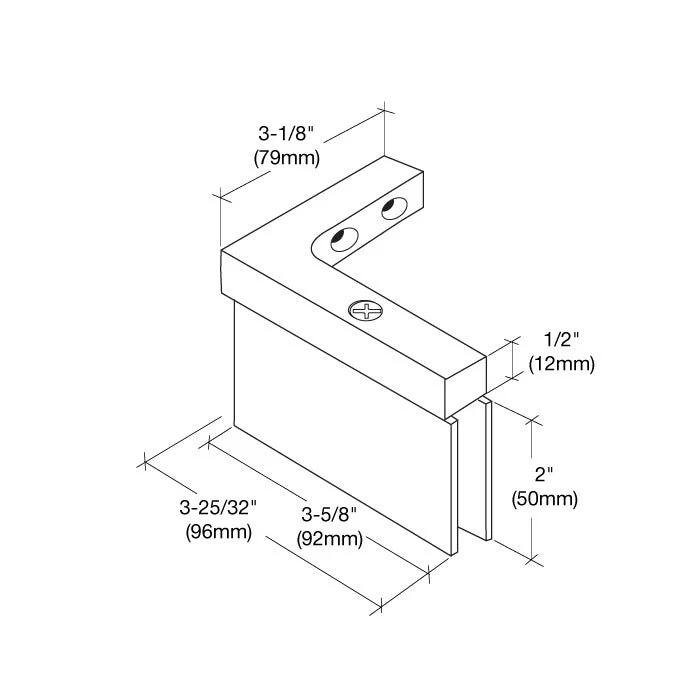

Glazing Thickness	5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing	Left Hand
Height	2 in. (51 mm)
Material	Brass
Maximum Door Weight	100 lbs. (45.4 kg)
Maximum Door Width	31 in. (787 mm)
Mounting Type	Wall Mount
Self-Centering	Yes
Series	Cadi
Width	3-5/8 in. (92 mm)

Color	Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
