CA05R Standard Right Hand Offset Bracket Wall Mount Shower Pivot Hinge

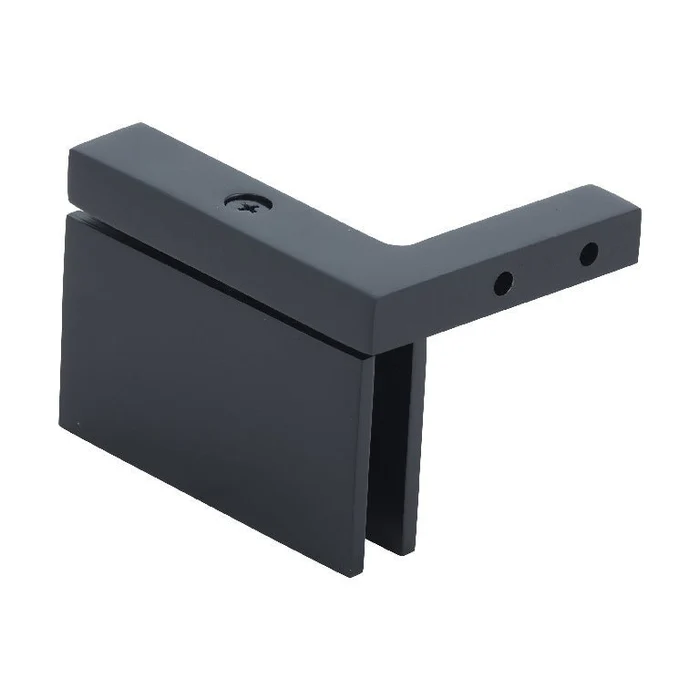

CA05R Standard Right Hand Offset Bracket Wall Mount Shower Pivot Hinge - Image 2

CA05R Standard Right Hand Offset Bracket Wall Mount Shower Pivot Hinge - Image 3

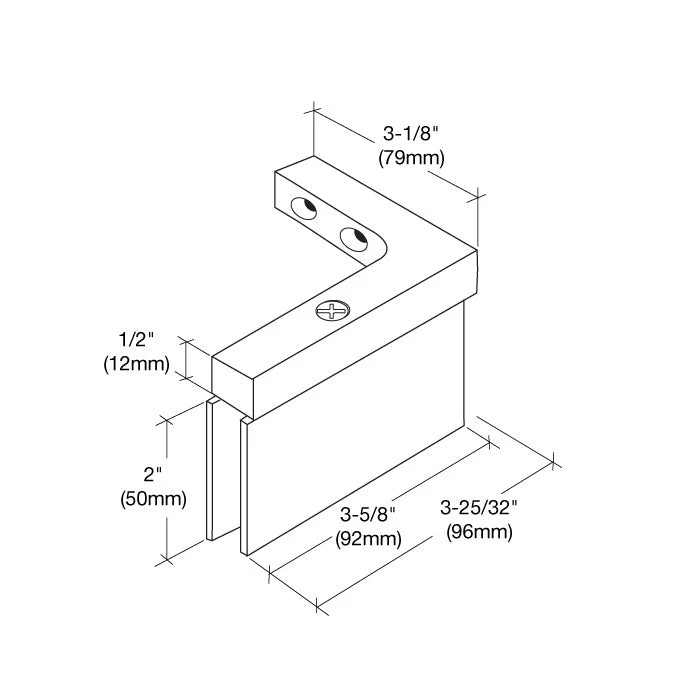

CA05R Standard Right Hand Offset Bracket Wall Mount Shower Pivot Hinge - Image 4

CA05R Standard Right Hand Offset Bracket Wall Mount Shower Pivot Hinge

$15.00 – $16.00

+ Free Shipping

SKU: CA05R Categories: Shower Door Hardware, Pivot Hinges Brand: TOPGLASS

Description
Additional information

Offset Bracket Wall Mount (Right Hand Mount When Viewed from Outside of Shower)
Available in Several Beautiful Finishes
Custom finishes are available on request.

Using two hinges with 5/16″ or 3/8″ glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31″ (787 mm).

Glazing Thickness	5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing	Right Hand
Height	2 in. (51 mm)
Material	Brass
Maximum Door Weight	100 lbs. (45.4 kg)
Maximum Door Width	31 in. (787 mm)
Mounting Type	Wall Mount
Self-Centering	Yes
Series	Cadi
Width	3-5/8 in. (92 mm)

Color	Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
