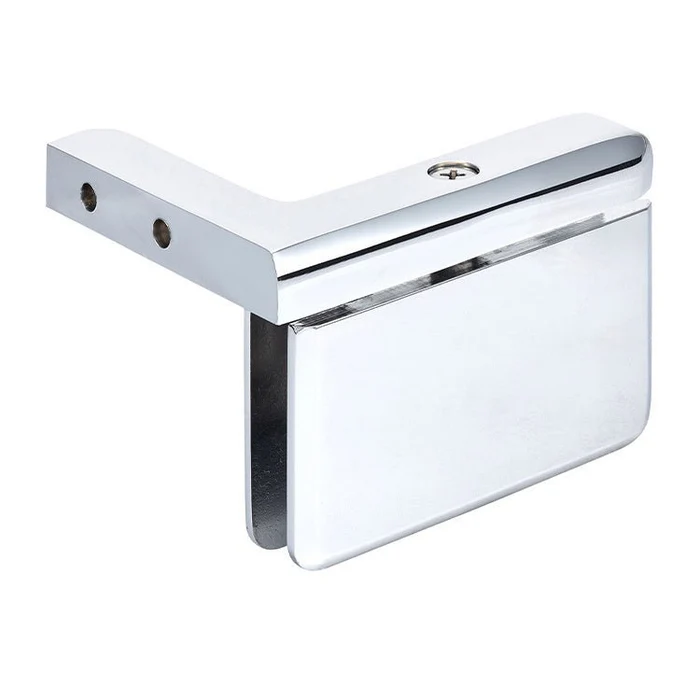

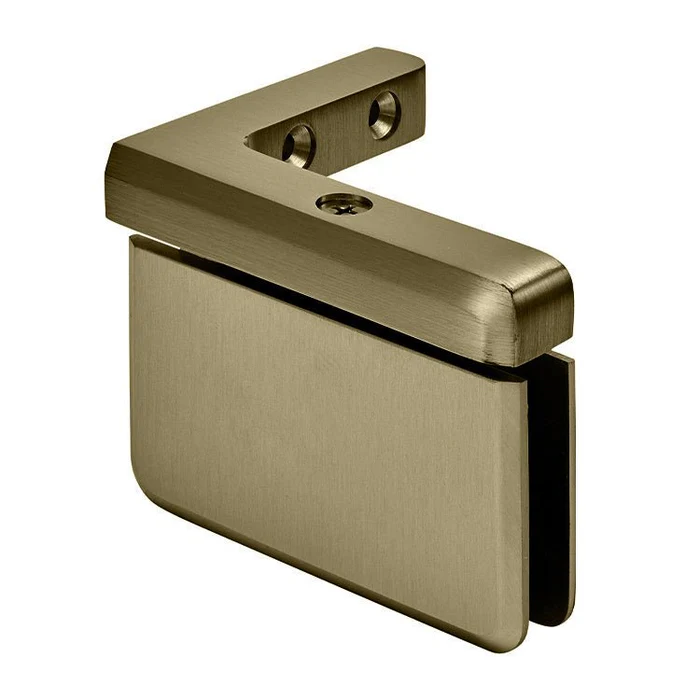

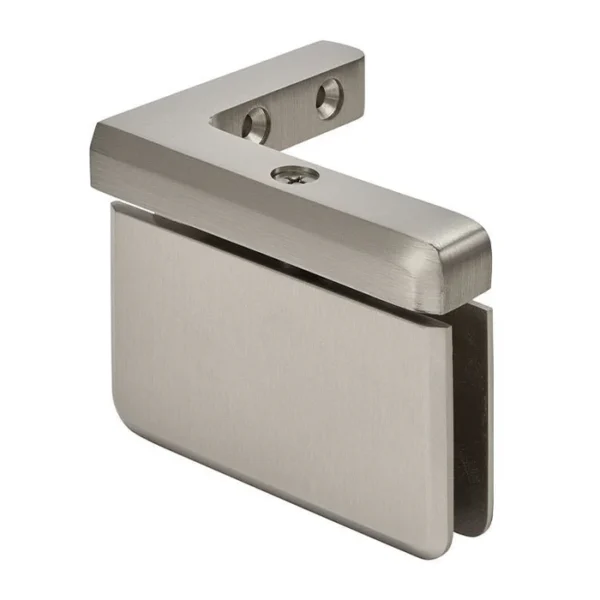

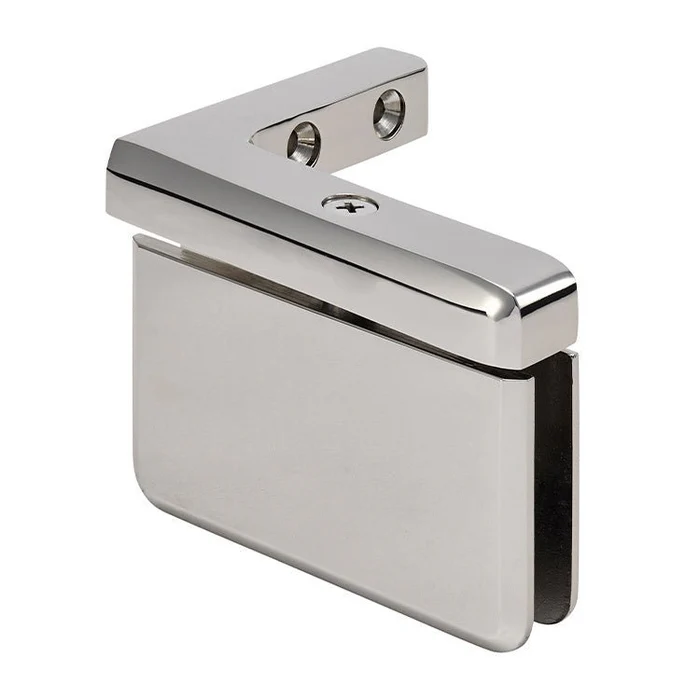

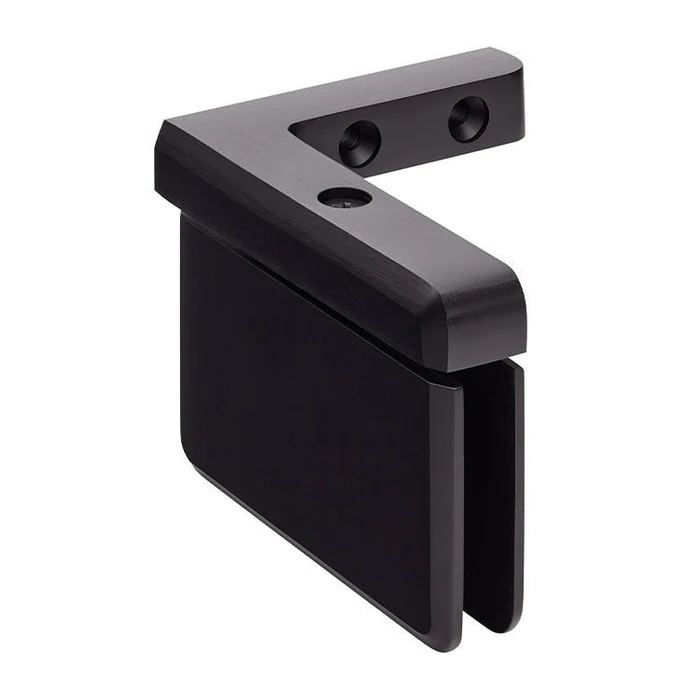

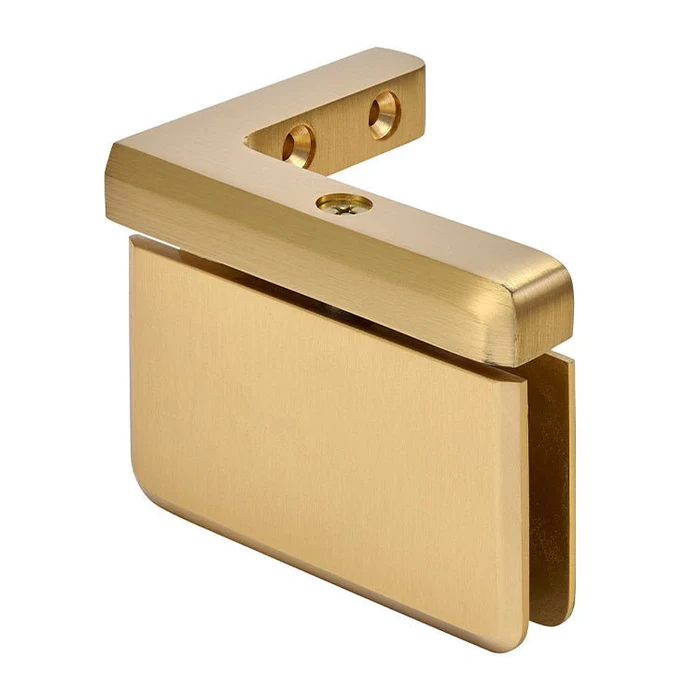

PR05L Standard Duty Beveled Left Hand Offset Mount Pivot Shower Hinge
PR05L Standard Duty Beveled Left Hand Offset Mount Pivot Shower Hinge - Image 2
PR05L Standard Duty Beveled Left Hand Offset Mount Pivot Shower Hinge - Image 3
PR05L Standard Duty Beveled Left Hand Offset Mount Pivot Shower Hinge - Image 4
PR05L Standard Duty Beveled Left Hand Offset Mount Pivot Shower Hinge - Image 5
PR05L Standard Duty Beveled Left Hand Offset Mount Pivot Shower Hinge - Image 6
PR05L Standard Duty Beveled Left Hand Offset Mount Pivot Shower Hinge - Image 7

PR05L Standard Duty Beveled Left Hand Offset Mount Pivot Shower Hinge

$15.00 – $17.00

+ Free Shipping
SKU: PR05L Categories: , Brand:
  • Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
  • Self-Centering with Optional 5 Degree Pivot Pin Set
  • Available in Several Beautiful Finishes
  • Custom finishes are available on request

Using two hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31″ (787 mm).

Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges.

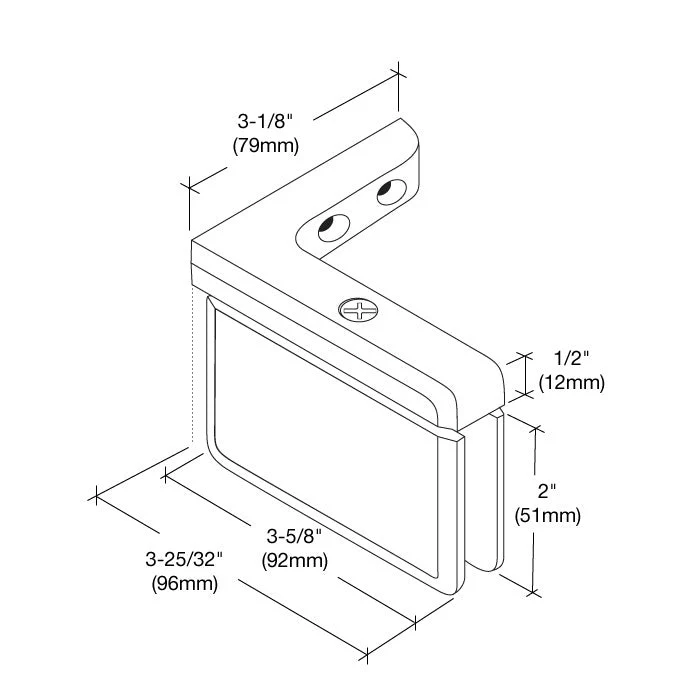

Specifications

Edge ProfileBeveled
Glazing Thickness5/16 in. To 3/8 in. (8 mm To 10 mm)
HandingLeft Hand
Height2 in. (51 mm)
MaterialBrass
Maximum Door Weight100 lbs. (45.4 kg)
Maximum Door Width31 in. (787 mm)
Mounting TypeWall Mount
Self-CenteringYes
SeriesPrma
Width3-5/8 in. (92 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
