CA02 Standard Duty Glass-to-Glass Glass-to-Fixed Transom Mount Shower Privot Hinge

$18.00 – $20.00

+ Free Shipping
SKU: CA02 Categories: , Brand:
  • Glass-to-Fixed Transom Mount
  • Available in Several Beautiful Finishes
  • Custom finishes are available on request.

Using two hinges with 5/16″ or 3/8″ glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31″ (787 mm).

Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges.

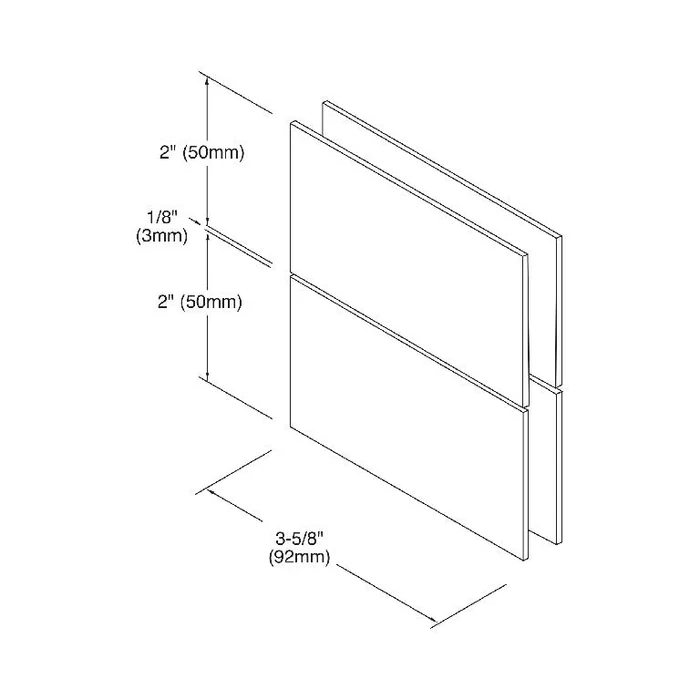

Specifications

Edge ProfileSquare
Glazing Thickness (Inches)5/16 To 3/8
Height – Door Portion (Inches)2
Height – Transom Portion (Inches)2
Length (Inches)3-5/8
MaterialBrass
Maximum Door Weight (Pounds)100
Maximum Door Width (Inches)31
Mounting TypeGlass To Transom
Self-CenteringYes
SeriesCadi
Width (Inches)3-5/8
Hinge Swings Full Rotation
Closing TypeSelf-Centering when within 15º of closed position
Color

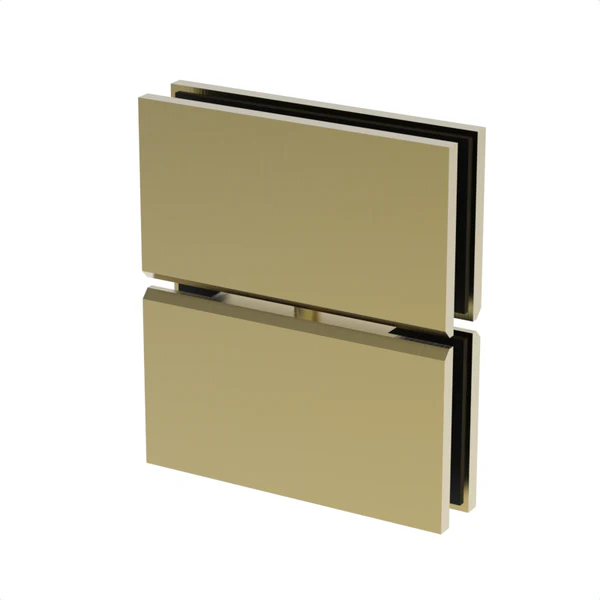

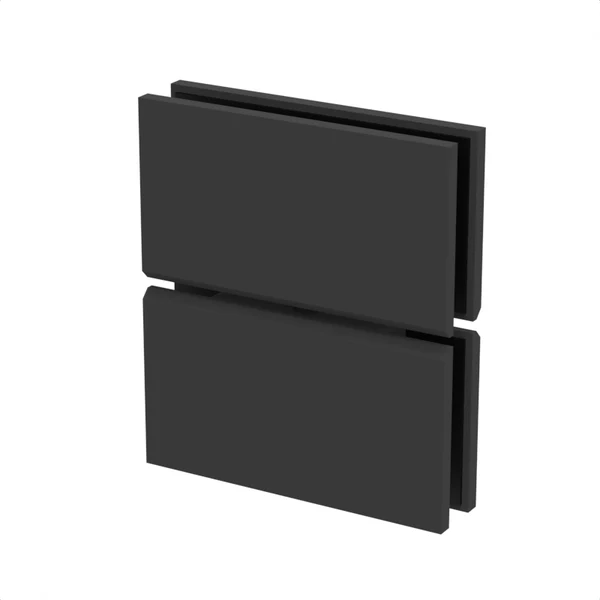

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
