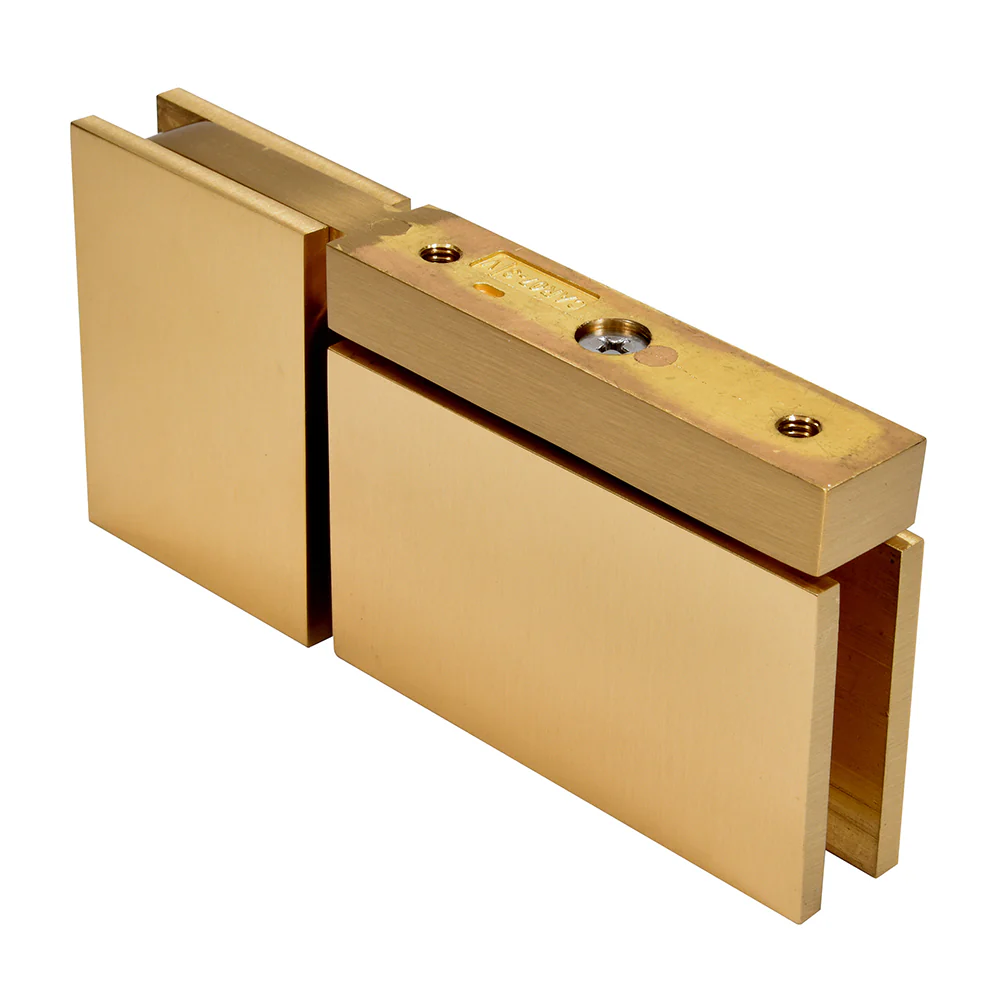

CA07 Standard Duty Top or Bottom Mount Pivot with Attached U-Clamp Hinge
CA07 Standard Duty Top or Bottom Mount Pivot with Attached U-Clamp Hinge - Image 2

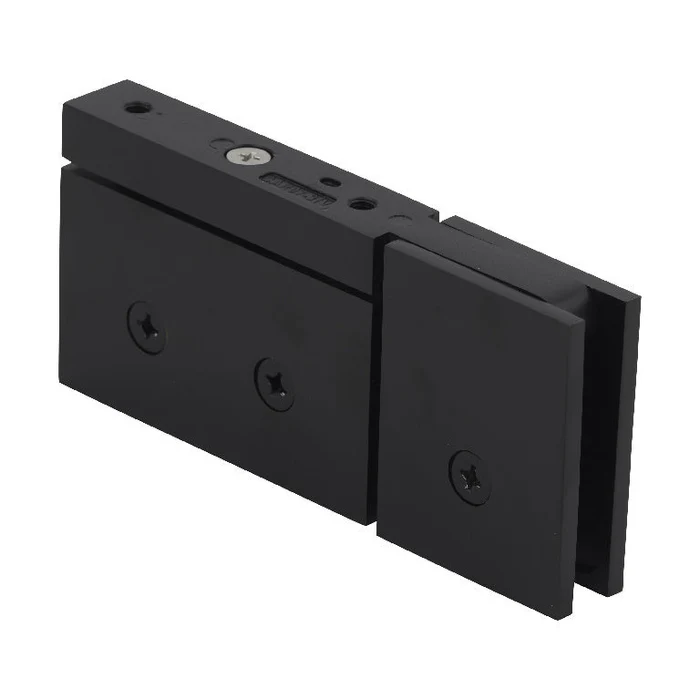

CA07 Standard Duty Top or Bottom Mount Pivot with Attached U-Clamp Hinge - Image 3

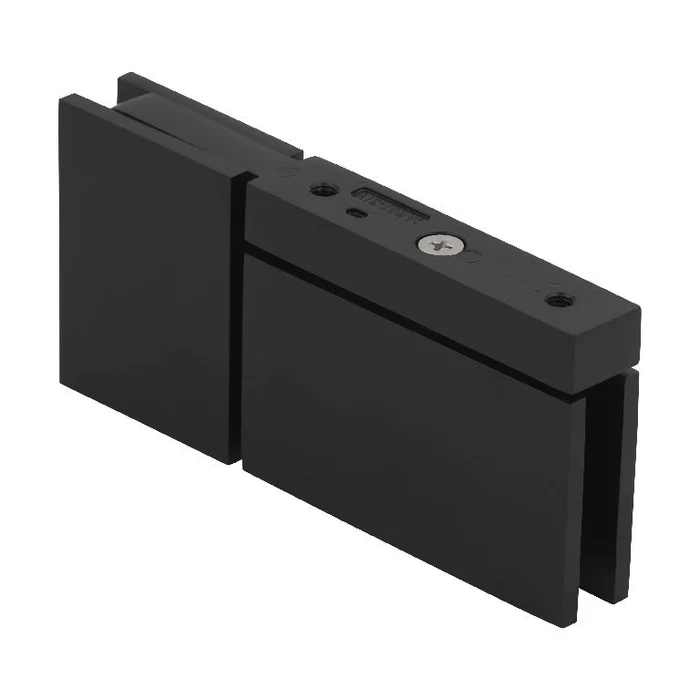

CA07 Standard Duty Top or Bottom Mount Pivot with Attached U-Clamp Hinge - Image 4

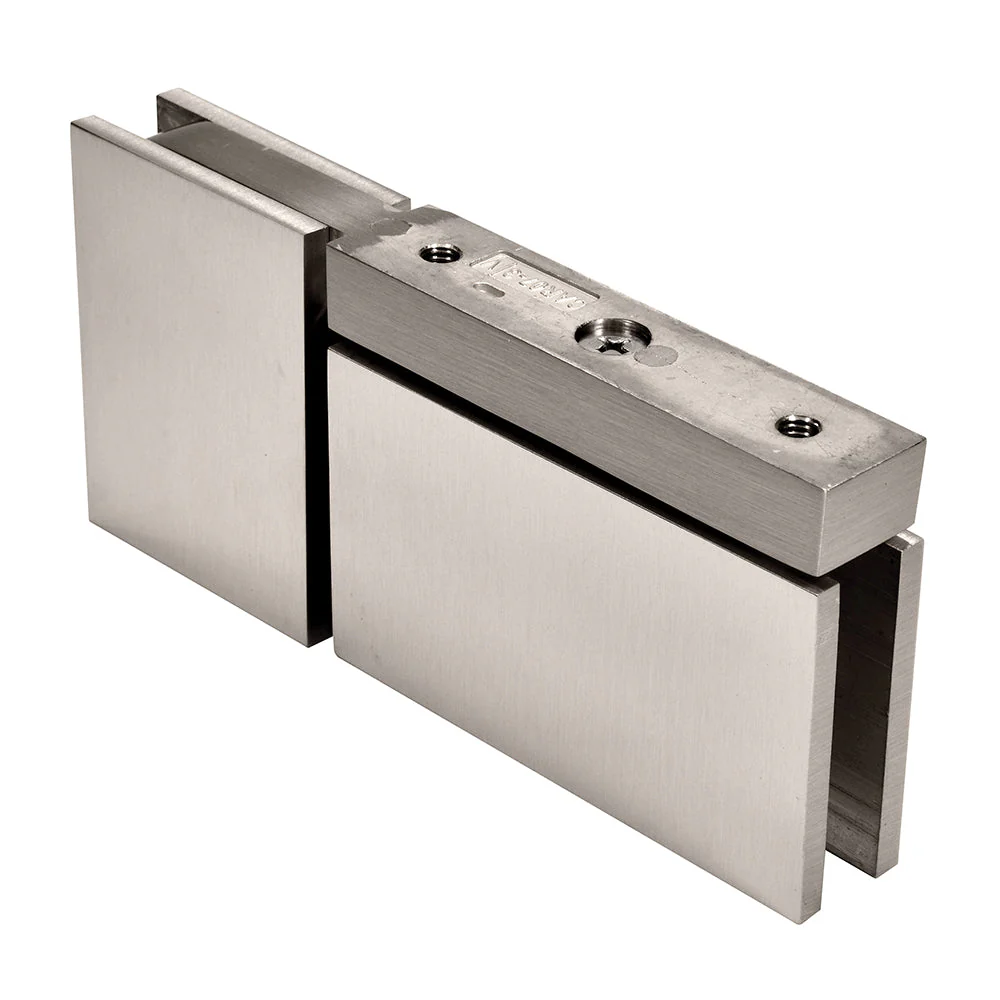

CA07 Standard Duty Top or Bottom Mount Pivot with Attached U-Clamp Hinge - Image 5

CA07 Standard Duty Top or Bottom Mount Pivot with Attached U-Clamp Hinge

$20.00 – $21.00

+ Free Shipping
SKU: CA07 Categories: , Brand:
  • Top or Bottom Mount with Attached U-Clamp
  • Provides Alternative to Using Traditional Horizontal Metal Header Systems Across Enclosure
  • Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
  • For 3/8″ and 5/16″ (10 and 8 mm) Thick Tempered Glass
  • Custom Finishes Available on Requested

Using two hinges with 5/16″ or 3/8″ glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31″ (787 mm).

Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges.

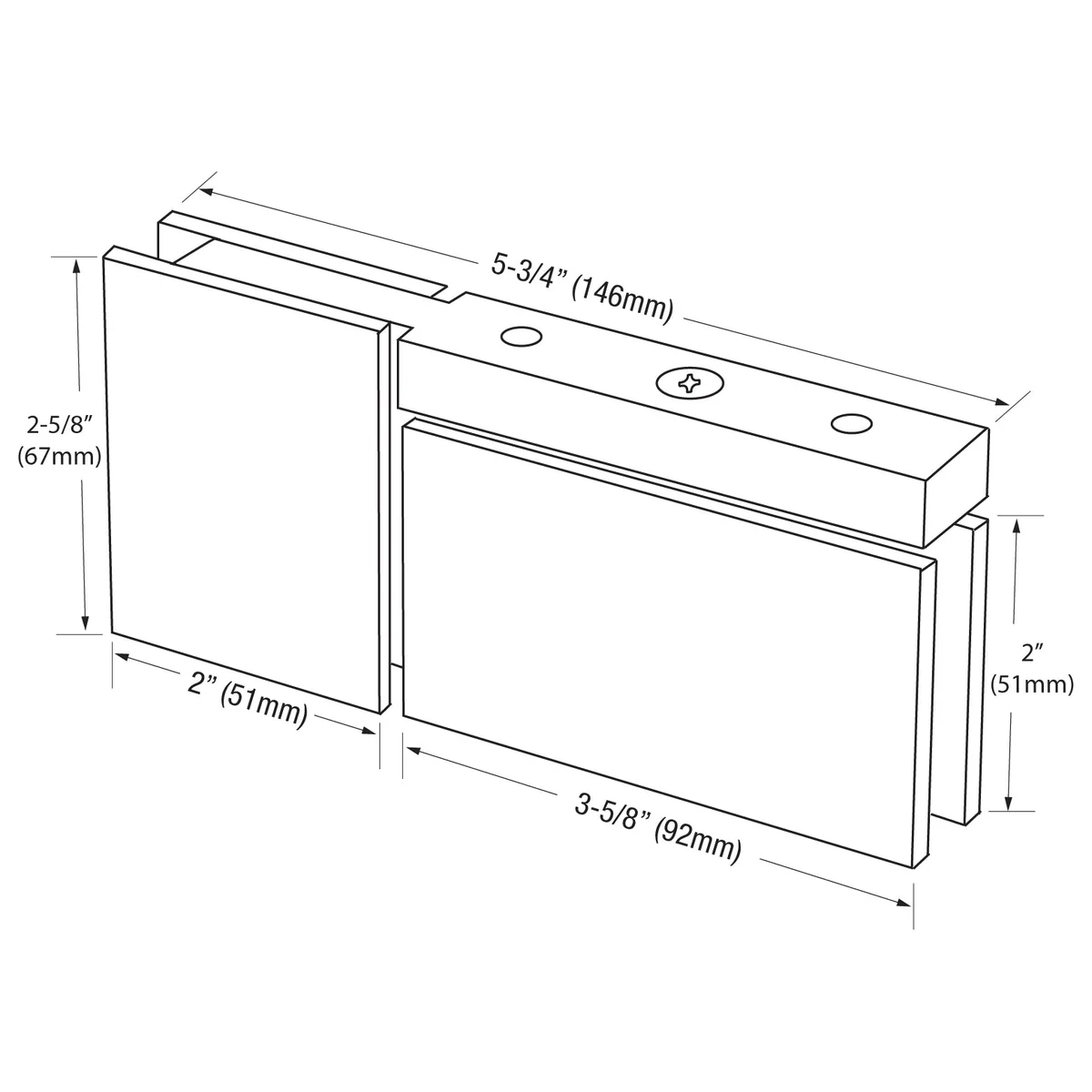

Specifications

Glazing Thickness5/16 in. To 3/8 in. (8 mm To 10 mm)
Height – Door Portion2 in. (51 mm)
Height – Sidelite Portion2-5/8
MaterialBrass
Maximum Door Weight100 lbs. (45.4 kg)
Maximum Door Width31 in. (787 mm)
Mounting TypeHead & Sill Mount
Self-CenteringYes
SeriesTSH-P14 (Cardiff)
Width – Door Portion3-5/8 in. (92 mm)
Width – Sidelite Portion2 in. (51 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
