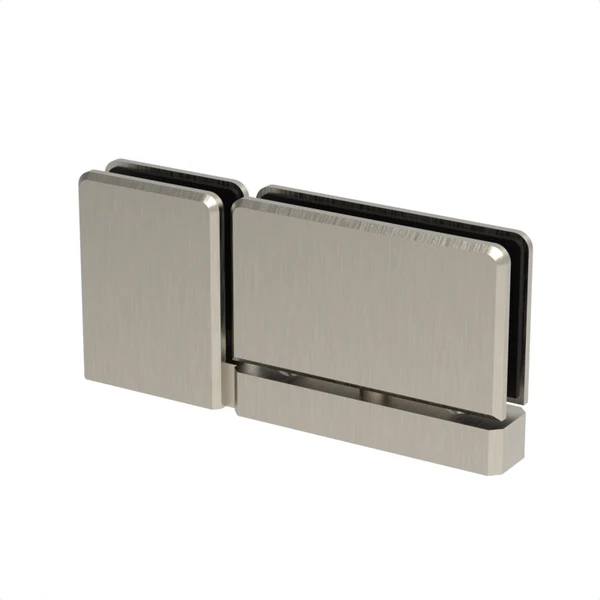

PR07 Beveled Glass to Glass Top or Bottom Mount Pivot Shower Hinge with Attached U-Clamp
PR07 Beveled Glass to Glass Top or Bottom Mount Pivot Shower Hinge with Attached U-Clamp - Image 2
PR07 Beveled Glass to Glass Top or Bottom Mount Pivot Shower Hinge with Attached U-Clamp - Image 3
PR07 Beveled Glass to Glass Top or Bottom Mount Pivot Shower Hinge with Attached U-Clamp - Image 4
PR07 Beveled Glass to Glass Top or Bottom Mount Pivot Shower Hinge with Attached U-Clamp - Image 5
PR07 Beveled Glass to Glass Top or Bottom Mount Pivot Shower Hinge with Attached U-Clamp - Image 6

PR07 Beveled Glass to Glass Top or Bottom Mount Pivot Shower Hinge with Attached U-Clamp

$19.00 – $21.00

+ Free Shipping
SKU: PR07 Categories: , Brand:
  • Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Header Systems)
  • Attached U-Clamp has Same Design and Profile as Hinge
  • Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
  • 5/16″ to 3/8″ (8 to 10 mm) Tempered Safety Glass

Specifications

Edge ProfileBeveled
Glass To Glass Angle180
Glazing Thickness5/16 in. To 3/8 in. (8 mm To 10 mm)
Hinge SwingsFull Rotation

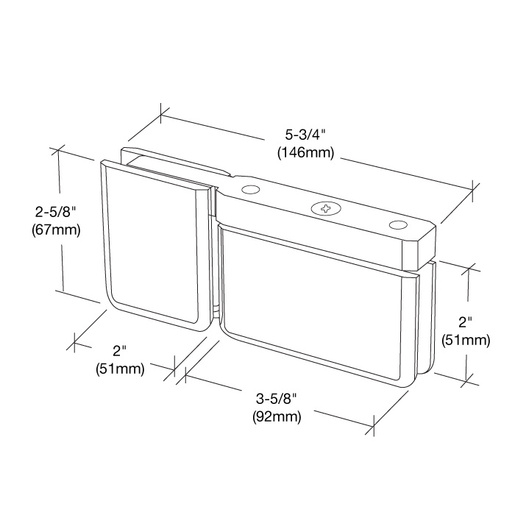

Height2-5/8 in. (67 mm)
Height – Door Portion2
Height – Sidelite Portion2-5/8
MaterialBrass
Maximum Door Weight100 lbs. (45.4 kg)
Maximum Door Width31 in. (787 mm)
Mounting TypeHead & Sill Mount
Closing TypeSelf-Centering when within 15 degree of closed position
SeriesPrma
Width – Door Portion3-5/8 in. (92 mm)
Width – Sidelite Portion1-13/16 in. (46 mm)
Color

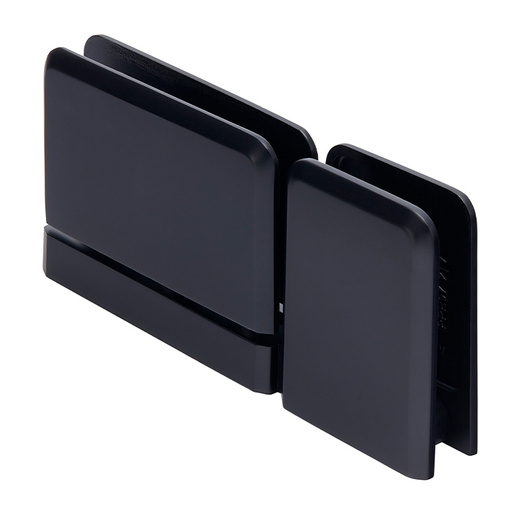

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
