- Works with 3/8″ to 1/2″ (10 to 12 mm) Thick Glass
- Glass Fabrication Required
- Versatile Installation Options
- Rise and Fall Action – 1/4″ (6.35mm)
- Snap-on Covers Conceal Mounting Hardware
- Accessory Kit for 90° & 135° Installation Sold Separately
- Sleek New Design
- Self-centers from 60°
- Adjustable Positive Closure (up to +/-15°)

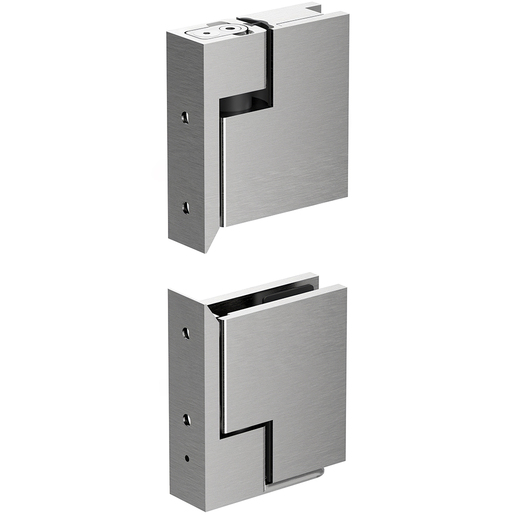

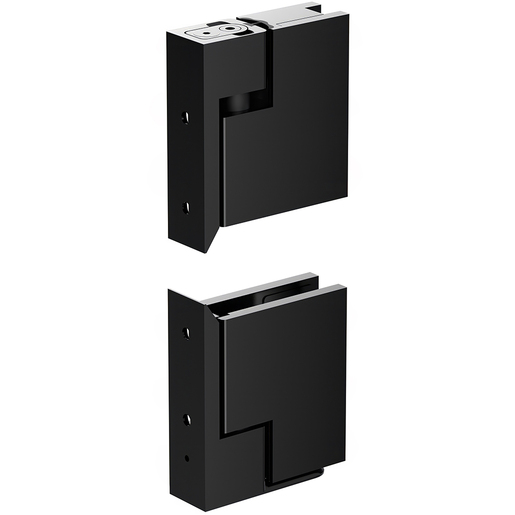

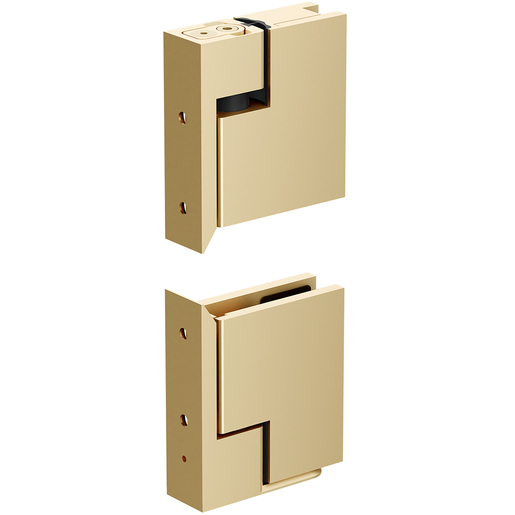

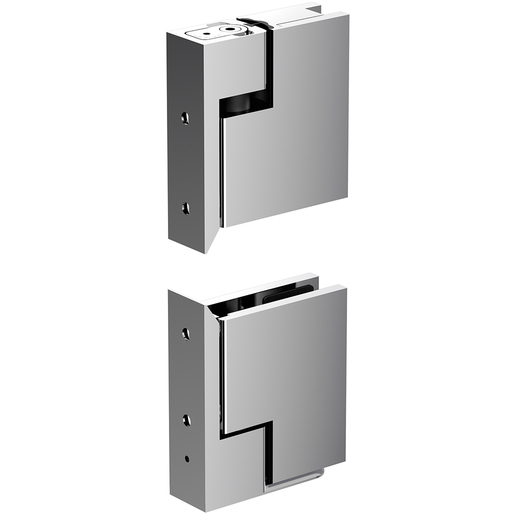

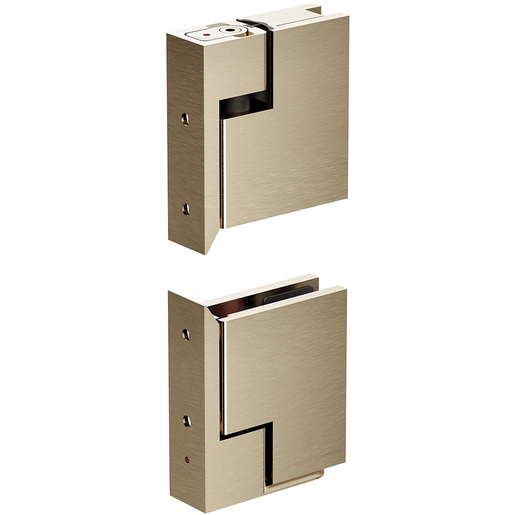

The Zelo Hinge Set offers a sleek, next-generation solution for shower installations, featuring a modern design and advanced technological breakthrough.
The Zero Hinge Set is self-centering within +/-60° of the closed position, ensuring precise alignment. It accommodates 3/8″” (10 mm) and 1/2″” (12 mm) glass and utilizes a rise-and-fall mechanism that lifts the glass door by 1/4″ (6.35mm) upon opening. This provides the option to eliminate the need for a bottom sweep and reduces friction with the sweep, facilitating barrier-free wheelchair accessibility. The dedicated top and bottom Zero Hinges are position-specific and are not interchangeable.

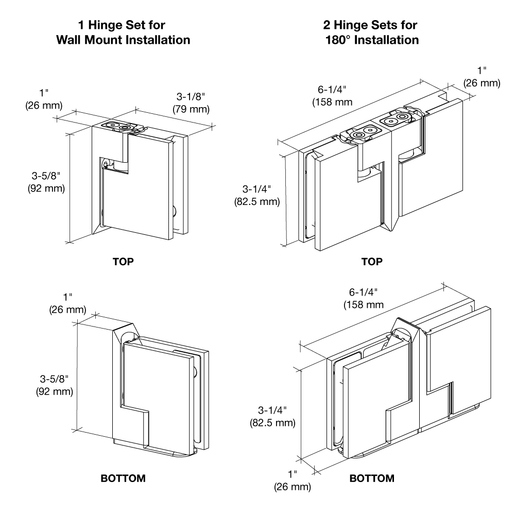

Its versatile technology allows the Zero Hinge Set to suit multiple applications, whether glass-to-wall or glass-to-glass. It can be installed on the wall or floor (acting as a pivoting hinge). The integrated clamp feature for floor installations reduces the need for additional hardware, for 90°, 135°, or 180° applications.
